SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Motor And Ice Container Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Dispenser Front Parts


08 - Air Flow Parts


09 - Control Parts

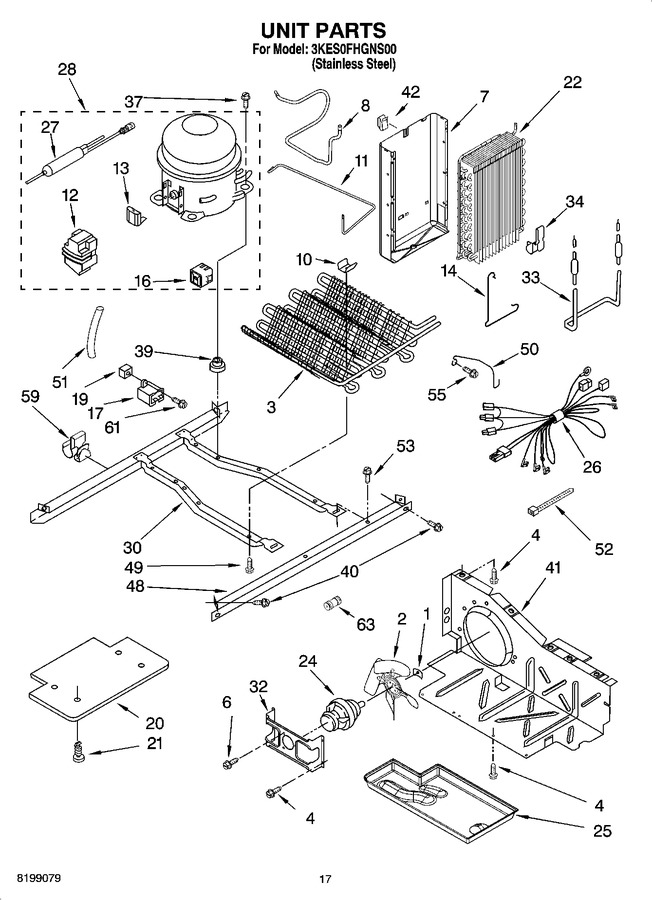

10 - Unit Parts


11 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	2190685		Fan, Blade				$ 52.00
3	2324712		Condenser Assembly   (Replaces: 2223953)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
6	681390		Screw   (Replaces: 489099)				$ 13.06
7	2304288		Heat Shield And Drain Pan		Appelez-nous	-
8	2205764		Tube Suction				$ 84.93
10	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
11	2261599		Tube, Condenser To Heat Loop				$ 232.07
12	WP61002138		Cover (service Only)   (Replaces: 4387959)				$ 8.77
13	4388786		Overload ((service, Includes Relay))   (Replaces: 4388101)		Appelez-nous	-
14	2161324		Clip, Defrost Heater		Appelez-nous	-
16	2188834		Start Device, Combination (start Relay And Overload) For Production Compressor Only				$ 67.74
17	WP2201147		Capacitor (service)   (Replaces: 4387874)				$ 128.97
17	WP2201147		Capacitor (production)   (Replaces: 2201147)				$ 128.97
19	509812		Screw Grommet		Appelez-nous	-
20	2200451		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 10.72
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
24	8201703		Motor, Fan   (Replaces: 2188539)				$ 354.00
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2187405		Unit, Harness		Appelez-nous	-
27	W10843121		Drier (production)   (Replaces: 2199167)			Immediately	$ 52.57
27	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
28	W10183407		Compressor (includes Items 12, 13, 17, 27 & 39) (also Order 876765 Tube Kit)   (Replaces: 2187162)				$ 414.86
30	2160499		Unit Mounting Frame		Appelez-nous	-
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
33	WP2313330		Heater, Defrost   (Replaces: 2188176)				$ 155.36
34	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
40	489340		Screw		Appelez-nous	-
41	2196201		Air Baffle		Appelez-nous	-
42	2155547		Clip, Heat		Appelez-nous	-
48	2149718		Unit Mounting Rail		Appelez-nous	-
49	W11544659		Screw   (Replaces: 8281232)				$ 13.67
50	2186496		Guard, Fan		Appelez-nous	-
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
52	WPW10339879		Wire Tie   (Replaces: 2221306)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
55	WP489478		Screw   (Replaces: 489478)				$ 7.75
59	2208280		Clip, Wire & Tube		Appelez-nous	-
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
63	N/A		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	978030		Valve, Access (3/4``)				$ 130.71
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	WP4373559		Union   (Replaces: 2209709)				$ 77.35
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85

    View Diagram in Separate Window       Print Part List
