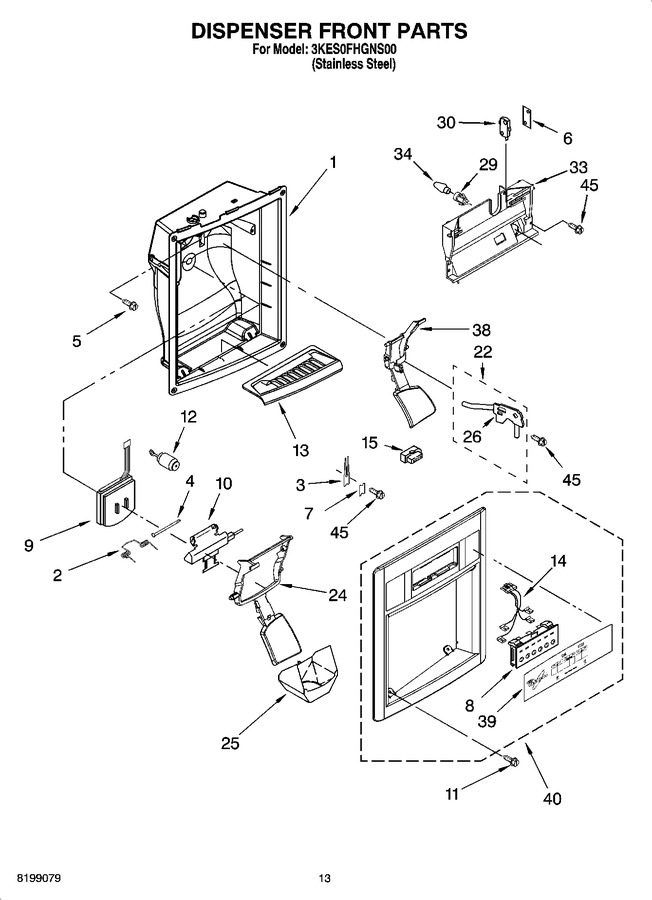

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | WPW10224328 | Spring, Torsion (Replaces: 2256199) |
|
$ 83.24 | |||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.77 | ||||
| 4 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 14.58 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 6 | 625834 | Spacer, Switch (2) |
|
$ 7.99 | |||||
| 7 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.67 | |||||
| 9 | WP2180353 | Door, Ice (Replaces: 2261464) |
|
Immediately | $ 24.69 | ||||
| 10 | 2206423 | Door Mechanism Assembly |
|
- | |||||
| 11 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.74 | ||||
| 12 | 2205686 | Mechanism Delay |
|
- | |||||
| 13 | 2207048B | Grille, Overflow |
|
$ 30.06 | |||||
| 14 | 2311650 | Wire Assembly (Replaces: 2187409) |
|
$ 89.68 | |||||
| 15 | 2169477 | Connector |
|
- | |||||
| 22 | 8201537 | Water Fitting Assembly (includes Water Tube) (Replaces: 2304317) |
|
$ 134.13 | |||||
| 24 | WP2255431B | Lever Assembly, Ice Dispenser (Replaces: 2255431B) |
|
$ 105.42 | |||||
| 25 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.63 | ||||
| 26 | WP2304673 | Bracket, Dispenser (Replaces: 2188355) |
|
$ 15.60 | |||||
| 29 | 2180200 | Lamp Holder |
|
$ 98.66 | |||||
| 30 | WP2162361 | Switch (4) (Replaces: 2162361) |
|
Immediately | $ 27.34 | ||||
| 33 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 24.39 | ||||
| 34 | 989331 | Bulb, Light |
|
- | |||||
| 38 | WP2255432B | Lever Assembly, Water Dispenser (Replaces: 2255432B) |
|
$ 106.06 | |||||
| 40 | 2214555B | Front Cover Assembly (includes Items 8, 14 & 39) |
|
- | |||||
| 45 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 |
