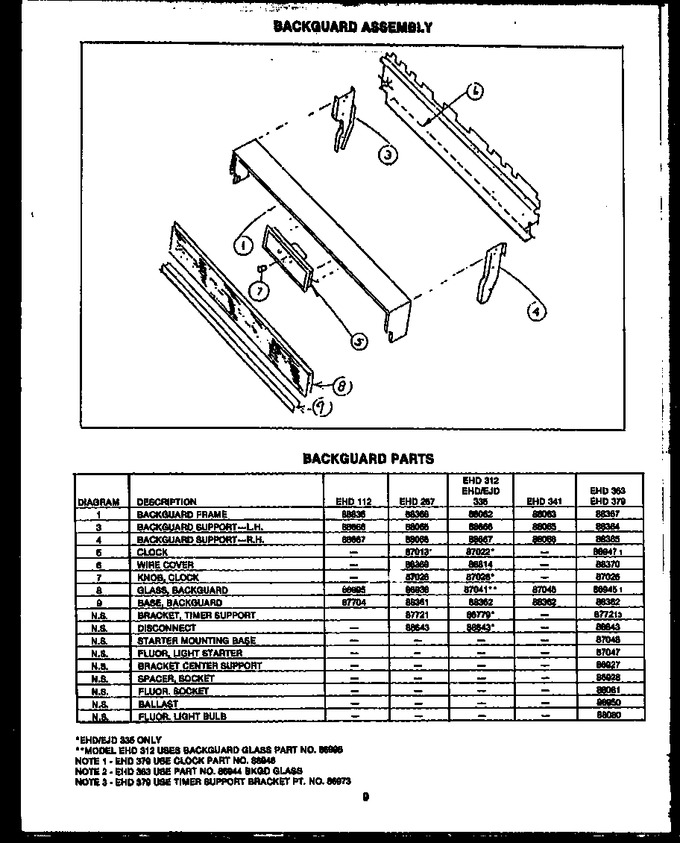

02 - Backguard Assy


03 - Cabinet Assy


04 - Lw Oven Elements & Internal Oven Acs


05 - Page 1


06 - Storage Drawer Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0088367		Sub 57325, Frame, Backguard		Appelez-nous	-
3	0088364		Support, Backguard, L.h.		Appelez-nous	-
4	0088365		Support, Backguard, R.h.		Appelez-nous	-
6	0088370		Sub 310989, Cover, Backguard		Appelez-nous	-
7	0087026		Knob, Clock		Appelez-nous	-
8	86944		Glass, Backguard				$ 778.36
9	Y0088362		Sub 86956, Porc Bkgd Base		Appelez-nous	-
NI	WPY0067945		Sub 67945 Lamp, Flourescent   (Replaces: Y0088080)				$ 34.22
NI	0086928		Spacer, Socket		Appelez-nous	-
NI	0087047		Starter, Flourescent		Appelez-nous	-
NI	0087048		Base, Fluor. Light Starter		Appelez-nous	-
NI	Y0086927		Bracket, Center Support		Appelez-nous	-
NI	Y0088643		Connector		Appelez-nous	-
NI	Y0086950		Sub 88129 Ballast		Appelez-nous	-
NI	0088081		Sub 89316, Kit, Fluor. Light		Appelez-nous	-
