SELECT A DIAGRAM

01 - All Black Glass Door


02 - Backguard Assy


03 - Cabinet Assy


04 - Lw Oven Elements & Internal Oven Acs


05 - Page 1

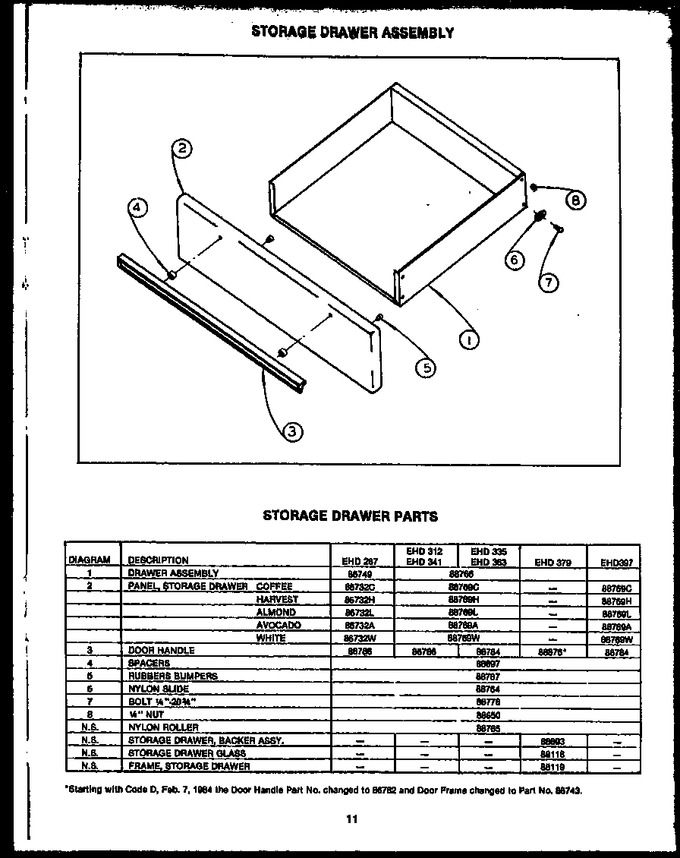

06 - Storage Drawer Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0088766		Sub 310537, Storage Drawer		Appelez-nous	-
2	088769W		Sub 310535w, Storage Drawer		Appelez-nous	-
2	88769A		Panel, Storage Drawer Avocado		Appelez-nous	-
2	88769L		Panel, Storage Drawer Almond		Appelez-nous	-
2	88769H		Panel, Storage Drawer Coffee		Appelez-nous	-
2	88769C		Panel, Storage Drawer Coffee		Appelez-nous	-
3	Y0086784		Sub 56139, Handle Door		Appelez-nous	-
4	Y0088697		Handle Spacer, Plastic (j)		Appelez-nous	-
5	Y0088787		Sub 88788, Rubber Bumper		Appelez-nous	-
6	0088764		Nylon Slide		Appelez-nous	-
7	0088778		Bolt		Appelez-nous	-
8	0088650		Square Nut {j}		Appelez-nous	-
NI	0088765		Roller		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
