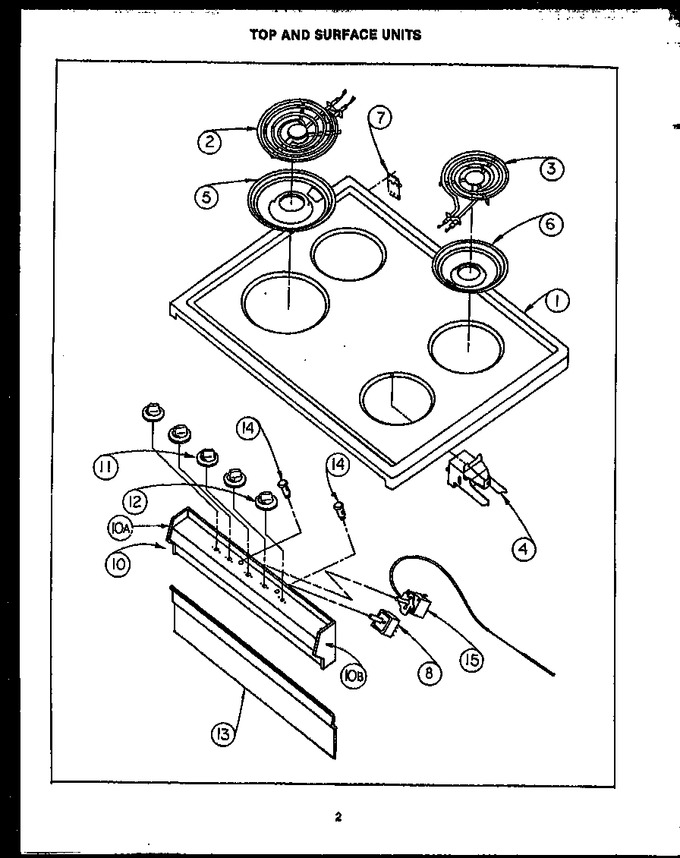

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	086931L		Main Top, Almond		Appelez-nous	-
1	Y086931W		Main Top, 30`` (white)		Appelez-nous	-
1	086931C		Main Top, Coffee		Appelez-nous	-
1	Y086931H		Main Top, Harvest		Appelez-nous	-
1	Y086931A		Main Top, Avocado		Appelez-nous	-
2	WPY04000035		Sub 51582, Element 8``   (Replaces: Y0086918)				$ 187.36
3	WPY04000036		Sub 51583, Element 6``   (Replaces: Y0086917)				$ 103.48
4	330031		Used In 0089336 Term Blk Kit   (Replaces: Y0086726)			Immediately	$ 21.35
5	Y0088810		Bowl, Burner 8`` (chrome)		Appelez-nous	-
6	WPW10196406		Sub 58591, Burner Bowl   (Replaces: Y0088811)			Immediately	$ 14.38
7	0088782		Hinge, Main Top		Appelez-nous	-
8	0088872		Switch, Infinite		Appelez-nous	-
9	WP74011243		Switch   (Replaces: Y0088873)				$ 135.19
10	0086976		End Cap, Rh		Appelez-nous	-
10	0086940		Manifold Panel		Appelez-nous	-
10	0086975		End Cap, Lh		Appelez-nous	-
11	Y0086942		Knob, Element		Appelez-nous	-
12	0086943		Knob, Thermostat		Appelez-nous	-
13	Y0086935		Switch Cover		Appelez-nous	-
14	Y0088777		Light, Indicator		Appelez-nous	-
14	0088640		Light, Pilot		Appelez-nous	-
15	0088758		Thermo-elect.		Appelez-nous	-
NI	0086983		Trim, Main Top		Appelez-nous	-
NI	Y0087020		Sub 63997, Switch, Rocker		Appelez-nous	-
NI	Y0088643		Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
