SELECT A DIAGRAM

01 - All Black Glass Door


02 - Backguard Assy

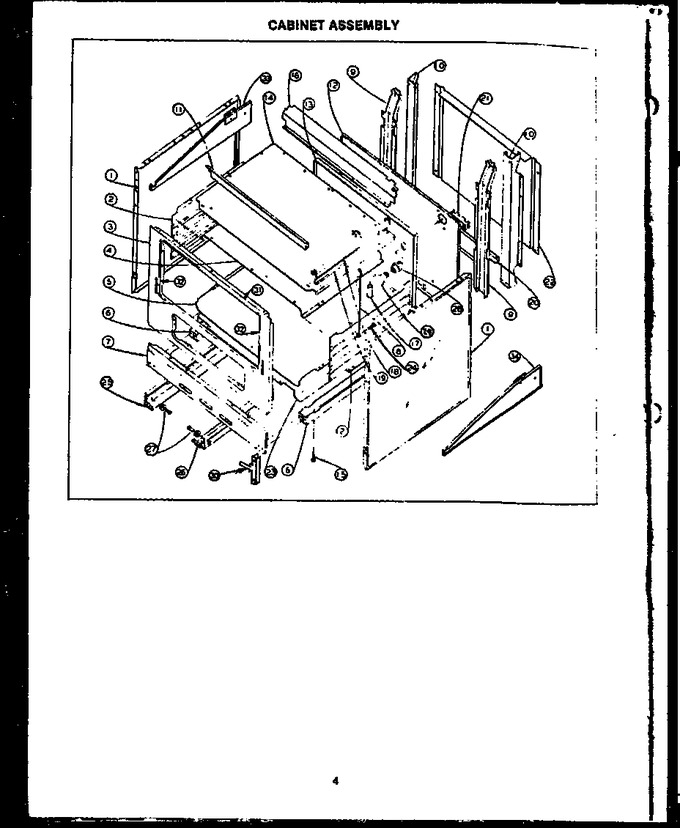

03 - Cabinet Assy


04 - Lw Oven Elements & Internal Oven Acs


05 - Page 1


06 - Storage Drawer Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	088652L		Sub 311003n, Side Panel		Appelez-nous	-
1	Y088652C		Body Side, Dark Copper		Appelez-nous	-
1	88652H		Body Side Harvest		Appelez-nous	-
1	Y088652W		Sub 311003w, Panel-side, White		Appelez-nous	-
1	88652A		Body Side Avocado		Appelez-nous	-
2	Y00000000		See Note Oven Side Liner -- (not Field Replaceable)		Appelez-nous	-
3	Y00000000		See Note Main Front -- (not Field Replaceable)		Appelez-nous	-
4	Y00000000		See Note Oven Top Liner -- (not Field Replaceable)		Appelez-nous	-
5	Y00000000		See Note Oven Bottom -- (not Field Replaceable)		Appelez-nous	-
6	0088654		Rail, Base		Appelez-nous	-
7	88655		Base, Front Frame		Appelez-nous	-
8	0087023		Support Rod		Appelez-nous	-
9	0088657		Sub 52742, Vertical Support		Appelez-nous	-
10	0088658		Rear Support		Appelez-nous	-
11	Y0086935		Switch Cover		Appelez-nous	-
12	88656		Main Back		Appelez-nous	-
13	Y00000000		See Note Oven Backliner -- (not Field Replaceable)		Appelez-nous	-
14	0086736		Burner Box		Appelez-nous	-
15	Y0088651		Sub 62362, Leg, Leveling		Appelez-nous	-
16	Y0088819		Burner Box Rear Cover		Appelez-nous	-
17	0088761		Oven Vent		Appelez-nous	-
18	Y0088816		Wire Channel		Appelez-nous	-
19	Y0088817		Wire Channel Support		Appelez-nous	-
20	Y0088832		Bottom Wire Cover Support		Appelez-nous	-
21	WP8203546		Terminal Block   (Replaces: Y0088776)			Immediately	$ 27.66
22	Y0088833		Cover Wire		Appelez-nous	-
23	Y0088820		Support, Oven Bottom Insul.		Appelez-nous	-
24	0088779		Shoulder Screw		Appelez-nous	-
25	88565		Drawer Track, R.h.		Appelez-nous	-
26	88565		Drawer Track, R.h.		Appelez-nous	-
27	0088765		Roller		Appelez-nous	-
28	Y0088674		Socket, Oven Light		Appelez-nous	-
29	316538904		Sub 42175, Lamp Oven   (Replaces: Y0088673)			Immediately	$ 22.75
30	Y0086789		Hinge, Oven Door		Appelez-nous	-
31	Y0088848		Sub 56091, Top Seal, Door		Appelez-nous	-
32	Y0088847		Sub 56090, Gasket, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
