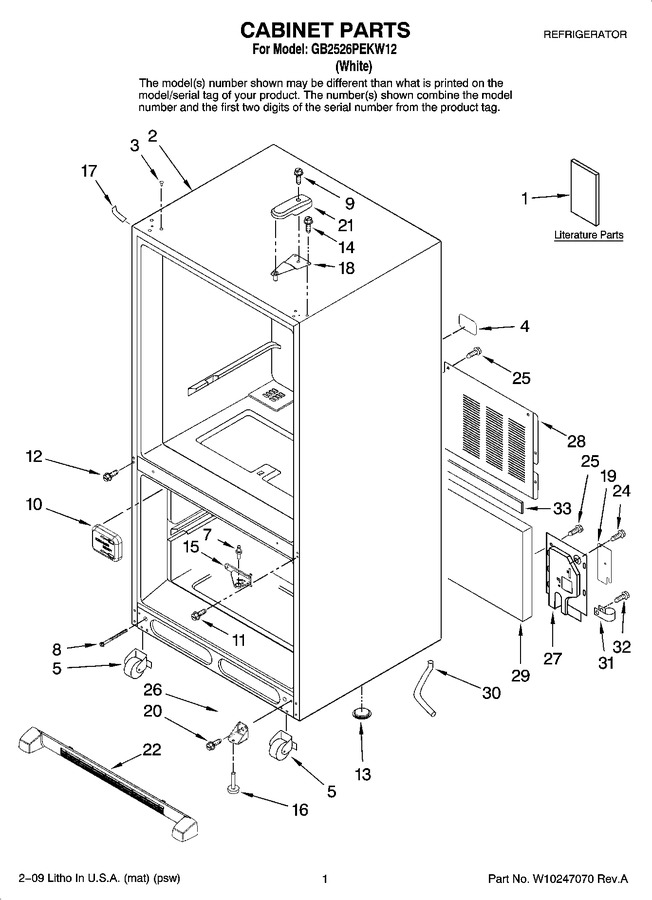

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12827958		Tech Sheet		Appelez-nous	-
1	12828189		Owners Manual		Appelez-nous	-
3	WP67001130		Plug, Button (3) White   (Replaces: M0310729)			Immediately	$ 5.98
4	W11685757		Label, Fill Tube   (Replaces: 67005064)				$ 7.06
5	67006118		Roller Assembly		Appelez-nous	-
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 7.93
8	71003131		Bolt, Adjusting (rear)   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	WP67001098		Cover, Fill Tube   (Replaces: 67001098)				$ 8.03
11	W11573362		Screw   (Replaces: 67006380)				$ 14.02
12	W11573362		Screw   (Replaces: 67006380)				$ 14.02
13	A3076901		Plug-button				$ 5.70
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 7.88
15	W11689473		Hinge, Center White   (Replaces: 12607103WD)				$ 66.47
16	W11177593		Foot Brake (2)   (Replaces: 67003868)				$ 11.60
17	12587703W		Cover, Corner White				$ 21.81
18	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 44.89
19	12479902		Plate, Cover		Appelez-nous	-
20	67006564		Screw (8)			Immediately	$ 7.69
21	67001014		Cover Hinge (white)				$ 21.28
22	WPW10534154		Grille Assembly (includes Clips) (white)   (Replaces: 67006377)				$ 146.34
24	WP489128		Screw   (Replaces: 67006662)				$ 10.88
25	67006425		Screw (9)			Immediately	$ 6.95
26	12906303WD		Hinge, Bottom (white)   (Replaces: 12906303ED)				$ 84.36
27	12479807		Cover, Water Valve		Appelez-nous	-
28	67006102		Cover, Unit		Appelez-nous	-
29	67003796		Insulation, Sound				$ 19.27
30	67001066		Tube, Drain				$ 55.82
31	67001067		Clip, Drain Tube				$ 9.20
32	WP33001882		Screw   (Replaces: 67006737)				$ 79.72
33	B5759649		Gasket		Appelez-nous	-
