SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)

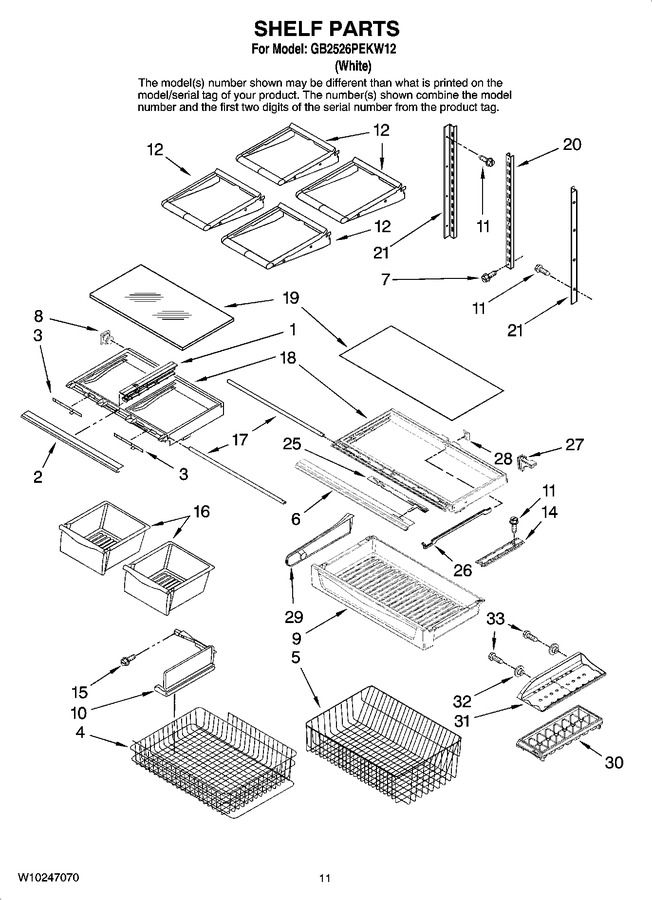

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10326469		Rail, Center Crisper   (Replaces: 67004514)			Immediately	$ 30.70
2	67004636		Trim, Crisper		Appelez-nous	-
3	WP67005864		Slide, Humidity   (Replaces: 67005864)			Immediately	$ 7.81
4	67004987		Basket, Freezer (upper)				$ 244.35
5	WPW10503184		Basket, Freezer (lower)   (Replaces: 67006025)				$ 238.17
6	67004554		Trim, Pantry		Appelez-nous	-
7	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.13
8	WP12603701		Support,crisper(2)   (Replaces: 12603701)				$ 10.31
9	67005917		Pan, Pantry		Appelez-nous	-
10	67004127		Divider, Basket (upper)				$ 10.10
11	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
12	67004637		Shelf, Glide				$ 113.49
14	WP67001719		Track, Deli   (Replaces: 67001719)			Immediately	$ 8.56
15	67006608		Screw		Appelez-nous	-
16	67005915		Pan, Crisper				$ 65.50
17	WP12642303WD		Brace, Crisper (2)   (Replaces: 12642303WD)				$ 106.91
18	WP67003854		Frame, Crisper (2)   (Replaces: 67003854)			Immediately	$ 227.55
19	WP67006704		Glass, Crisper   (Replaces: 67006704)				$ 212.77
20	67001073		Ladder, Center				$ 54.18
21	67001317		Ladder, Side				$ 39.13
25	67002002		Slide,pantry			Immediately	$ 16.04
26	67004555		Bar, Control		Appelez-nous	-
27	WP12531601		Tunnel, Pantry   (Replaces: 12531601)				$ 10.51
28	67002005		Gasket, Pantry		Appelez-nous	-
29	67004556		Divider, Pantry				$ 21.41
30	WP841180A		Tray, Ice Cube   (Replaces: 67001747)			Immediately	$ 45.56
31	12646501		Rack, Ice		Appelez-nous	-
32	10972101		Spacer, Rack				$ 7.82
33	WP67006908		Screw (2)   (Replaces: 67006908)			Immediately	$ 7.95
