SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)

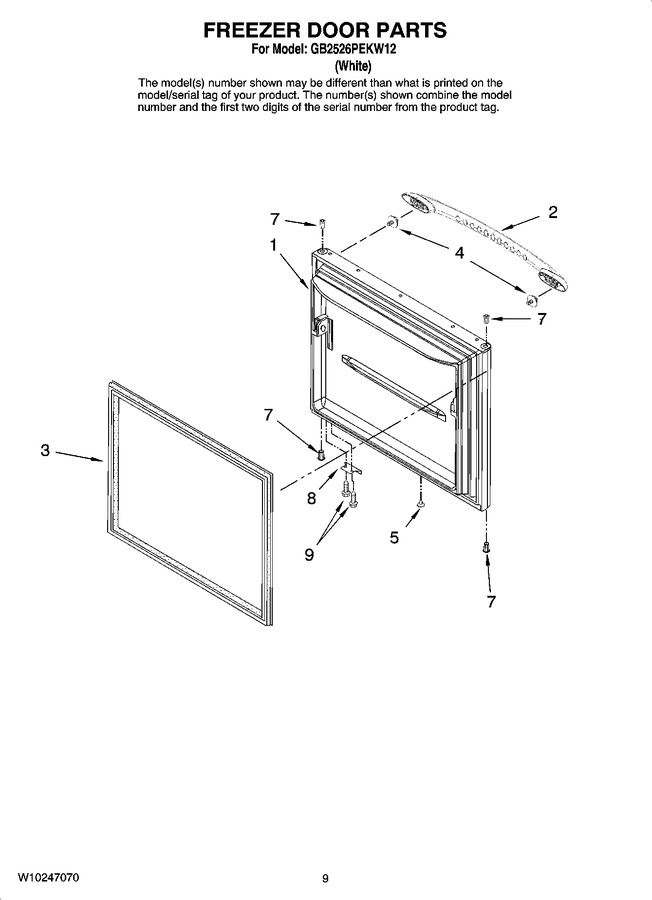

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13092203WQ		Freezer Door (w/ Insulation) (white)		Appelez-nous	-
2	WPW10119651		Handle, Door (white)   (Replaces: W10119651)				$ 200.08
3	W10443319		Gasket, Door (white)   (Replaces: W10133249)				$ 281.76
4	WP12992902		Screw, Handle   (Replaces: 12992902)				$ 11.07
5	8208212		Plug, Button (white)		Appelez-nous	-
7	WP67004977		Bushing (white)   (Replaces: 67004977)				$ 7.81
8	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 65.99
9	WP98165		Screw   (Replaces: 67006287)				$ 8.00

    View Diagram in Separate Window       Print Part List
