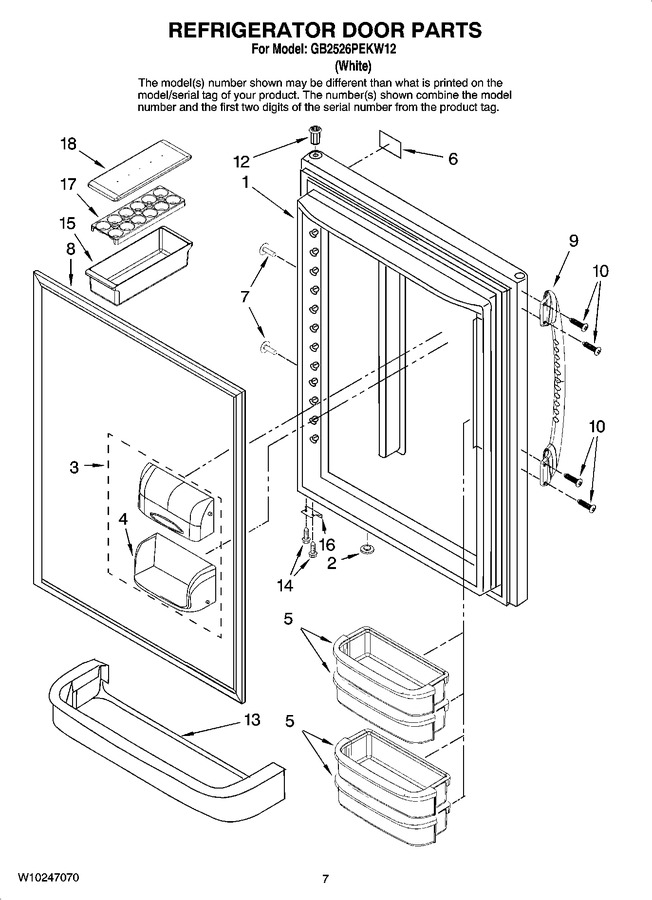

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12658531WQ		Refrigerator Door (w/ Insulation) (white)		Appelez-nous	-
2	8208212		Plug, Vent (white)		Appelez-nous	-
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 108.56
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	67004530		Bucket, Lrg (2)		Appelez-nous	-
5	67004040		Bucket, Med (2)				$ 91.42
6	66981-5		Nameplate		Appelez-nous	-
7	67006668		Screw, Handle				$ 12.83
8	W10443317		Gasket, Door Magnetic (white)   (Replaces: W10133418)				$ 349.32
9	WP12781004W		Handle, Door (white)   (Replaces: 67006119)				$ 183.57
10	67006668		Screw				$ 12.83
12	WP67004977		Bushing (white)   (Replaces: 67004977)				$ 7.81
13	67003027		Retainer, Door		Appelez-nous	-
14	WP98165		Screw   (Replaces: 67006287)				$ 8.00
15	10423131		Bin, Utility				$ 31.13
16	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 65.99
17	10436506		Tray, Egg				$ 8.28
18	10436404		Lid, Utility				$ 60.85
