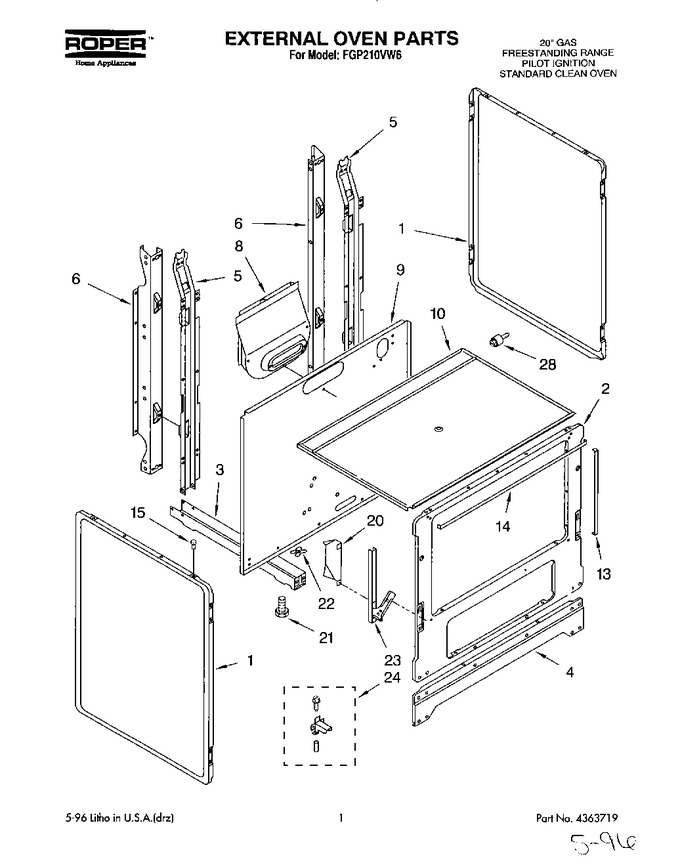

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363024		Panel, Side (2) (white Texture)		Appelez-nous	-
1	4363025		Panel, Side (2) (almond Texture)		Appelez-nous	-
1	WP308685		Panel, Side (2) (screw)   (Replaces: 4320407)			Immediately	$ 7.87
2	4315206		Frame, Front		Appelez-nous	-
2	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
3	4363194		Rail, Base (2)		Appelez-nous	-
4	4363014		Base, Front		Appelez-nous	-
5	4157011		Support, Main (2)		Appelez-nous	-
5	4320661		Screw		Appelez-nous	-
5	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
6	4320661		Screw		Appelez-nous	-
6	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
6	4315382		Support, Rear (2)		Appelez-nous	-
8	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
8	4363002		Box, Flue		Appelez-nous	-
9	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
9	4315414		Panel, Rear		Appelez-nous	-
10	4363053		Burner Box		Appelez-nous	-
10	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
13	4315334		Seal, Door (2) (side)		Appelez-nous	-
14	4315471		Seal, Door (2) (top)		Appelez-nous	-
15	4157027		Bumper, Cooktop (2)		Appelez-nous	-
20	4157876		Shield		Appelez-nous	-
21	4363195		Leg, Leveler (4)		Appelez-nous	-
22	4157332		Nut (4)		Appelez-nous	-
23	4363537		Screw		Appelez-nous	-
23	4320567		Screw		Appelez-nous	-
23	4315464		Hinge, Door (2)		Appelez-nous	-
24	4320545		Anti-tip Kit		Appelez-nous	-
28	4315409		Stud Screw (2)		Appelez-nous	-
28	4315408		Locator Stud (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
