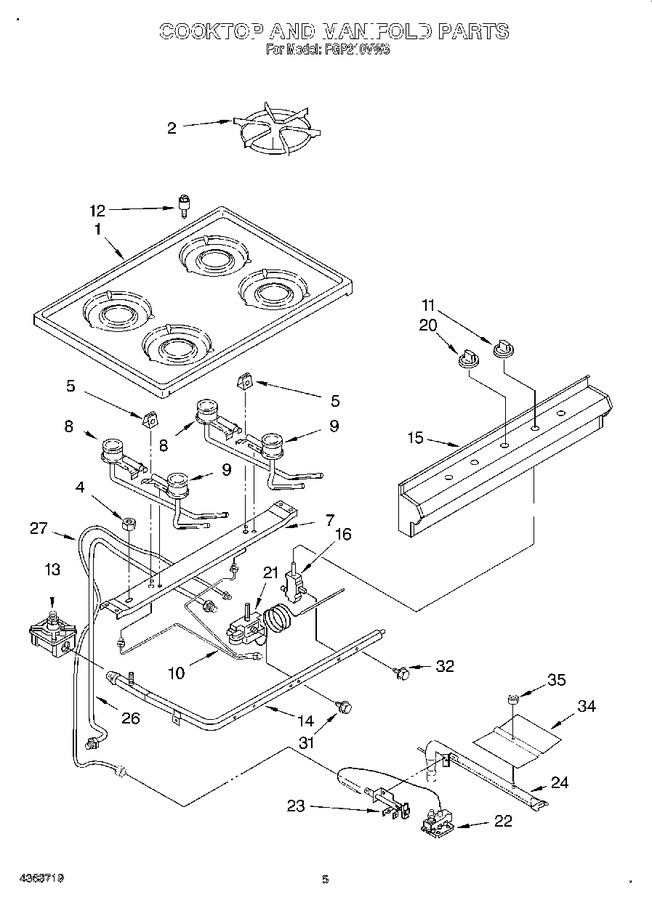

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320358		Cooktop (almond)		Appelez-nous	-
1	4320357		Cooktop (white)		Appelez-nous	-
2	4157056		Grate (4)		Appelez-nous	-
4	4157075		Nut, Hex		Appelez-nous	-
5	4157076		Cover, Pilot (2)		Appelez-nous	-
7	4363017		Support, Burner		Appelez-nous	-
7	4320431		Screw		Appelez-nous	-
8	4363106		Burner, Rear (2)		Appelez-nous	-
8	4320431		Screw		Appelez-nous	-
9	4320431		Screw		Appelez-nous	-
9	4363104		Burner, Front (2)		Appelez-nous	-
10	4157926		Tubing, Pilot		Appelez-nous	-
11	4315516		Knob, Burner (4)		Appelez-nous	-
12	4157115		Speed Clip (2)		Appelez-nous	-
12	4314933		Locator Stud (2)		Appelez-nous	-
13	4157084		Regulator, Pressure		Appelez-nous	-
14	4315543		Manifold		Appelez-nous	-
15	4315544		Panel, Manifold		Appelez-nous	-
16	4314821		Valve, 90~ (4) (includes Ill. No. 32)		Appelez-nous	-
20	4315517		Knob, Thermostat		Appelez-nous	-
21	4314822		Thermostat (includes Ill. No. 31)		Appelez-nous	-
22	4157094		Valve, Safety		Appelez-nous	-
23	4363363		Pilot		Appelez-nous	-
24	4320371		Burner, Oven		Appelez-nous	-
24	4320567		Screw		Appelez-nous	-
26	4157098		Tubing 3/8`` (thermostat Safety Valve)		Appelez-nous	-
27	4157099		Tubing 3/8`` (thermostat Pilot)		Appelez-nous	-
31	4314816		Bolt, Thermostat Mounting (2)		Appelez-nous	-
32	4314817		Bolt, Valve Mounting		Appelez-nous	-
34	4363700		Spreader, Flame		Appelez-nous	-
35	W10080180		Nut, Hex   (Replaces: 4157052)				$ 14.15
