SELECT A DIAGRAM
01 - External Oven
02 - Oven Door And Broiler
03 - Cooktop And Manifold
04 - Internal

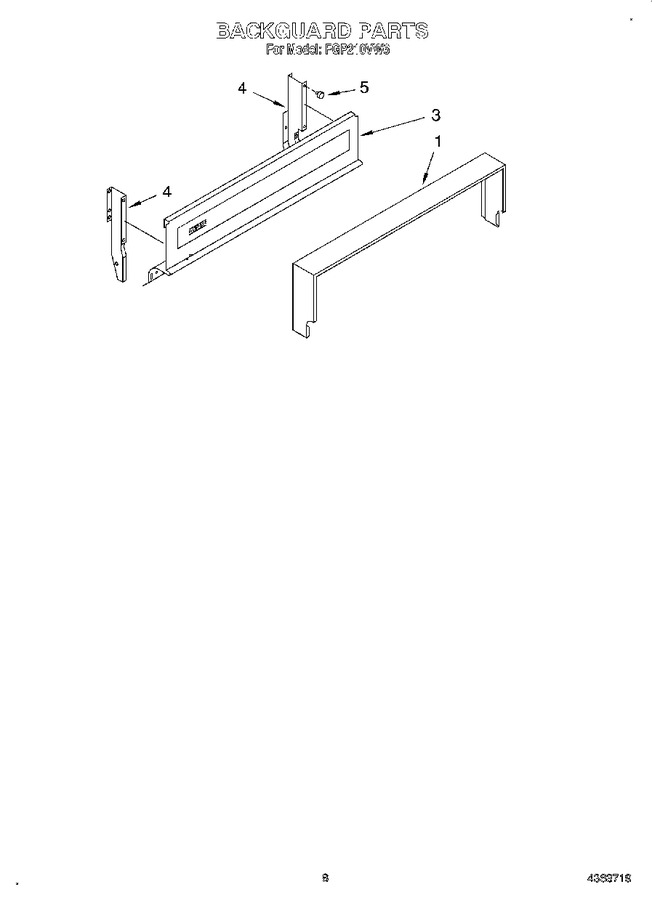

05 - Backguard, Literature
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4363313 | Frame |
|
- | |||||
| 1 | WP308685 | Screw (Replaces: 4320407) |
|
Immediately | $ 7.87 | ||||
| 3 | 4363537 | Backguard Panel (screw) |
|
- | |||||
| 3 | 4315547 | Backguard Panel (almond) |
|
- | |||||
| 3 | 4315546 | Backguard Panel (white) |
|
- | |||||
| 4 | 4320431 | Support, Backguard (screw) |
|
- | |||||
| 4 | 4157160 | Support, Backguard (right Hand) |
|
- | |||||
| 4 | 4157159 | Support, Backguard (left Hand) |
|
- | |||||
| 5 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 5 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | ||||
| 5 | 4315387 | Bumper (4) |
|
- | |||||
| 5 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | ||||
| LIT4362938 | Installation Instructions |
|
- | ||||||
| LIT4363740 | Use & Care Guide |
|
- |
