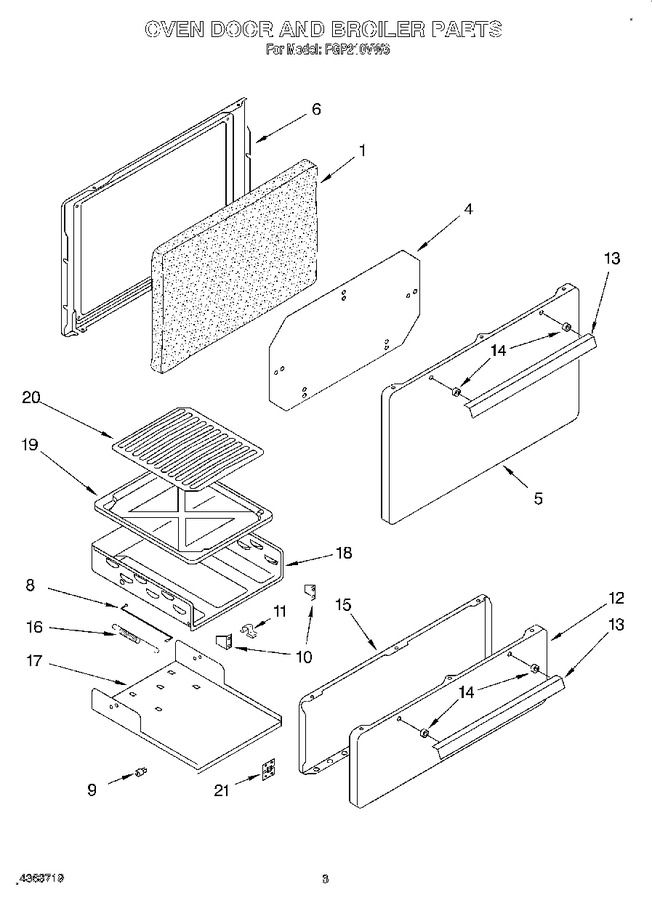

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4363738		Insulation		Appelez-nous	-
4	4363615		Baffle		Appelez-nous	-
5	4363021		Panel, Door (white)		Appelez-nous	-
5	4363037		Panel, Door (almond)		Appelez-nous	-
5	4320472		Panel, Door (screw)		Appelez-nous	-
6	4363614		Liner, Door		Appelez-nous	-
8	4363047		Rod, Push-pull (2)		Appelez-nous	-
9	4363377		Glide, Broiler (4)		Appelez-nous	-
10	4363048		Bracket (2)		Appelez-nous	-
10	WP308685		Screw, 10-12 X 1/2   (Replaces: 4320407)			Immediately	$ 7.87
11	4157959		Clip, Spring		Appelez-nous	-
12	4320575		Panel, Broiler (screw, 8-18 X 1/2 (4))		Appelez-nous	-
12	4363019		Panel, Broiler (white)		Appelez-nous	-
12	4363020		Panel, Broiler (almond)		Appelez-nous	-
13	4320742		Screw		Appelez-nous	-
13	4157794		Handle, Door (2)		Appelez-nous	-
13	4157118		Screw		Appelez-nous	-
14	4157041		Spacer (4)		Appelez-nous	-
15	4315090		Liner, Broiler Door		Appelez-nous	-
16	4363233		Spring (2)		Appelez-nous	-
17	4362896		Sub-carriage, Broil		Appelez-nous	-
18	4315520		Carriage, Broiler		Appelez-nous	-
19	4396923		Pan, Broiler   (Replaces: 4315095)			Immediately	$ 60.71
20	4315094		Grid		Appelez-nous	-
21	WP308685		Screw   (Replaces: 4320407)			Immediately	$ 7.87
21	4363046		Hinge, Door (2)		Appelez-nous	-
