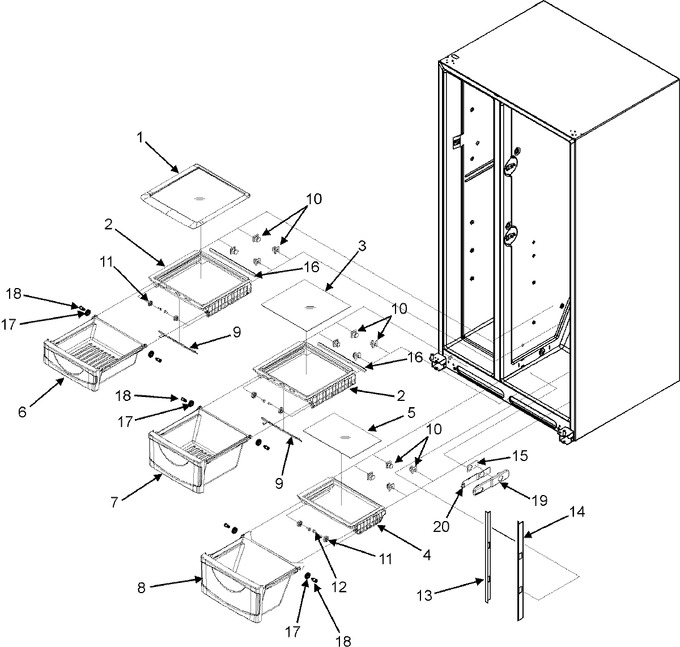

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004130		Shelf, Crisper Top	10	Appelez-nous	-
2	67004140		Frame, Crisper Shelf	10	Appelez-nous	-
3	67004246		Glass, Crisper Shelf	10	Appelez-nous	-
4	67004247		Frame, Meat Shelf	10	Appelez-nous	-
5	67004132		Glass, Meat Shelf	10	Appelez-nous	-
6	67005818		Pan, Sm Crisper	10	Appelez-nous	-
7	67005815		Pan, Lg Crisper		Appelez-nous	-
8	67005752		Pan, Meat		Appelez-nous	-
9	67004885		Slide, Control (wht)	10	Appelez-nous	-
10	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	10			$ 10.83
11	67004169		Roller, Crisper	10			$ 5.81
12	67006692		Screw, Shoulder   (Replaces: M0238105)	10			$ 10.79
13	67004170		Pillar (lt)	10	Appelez-nous	-
14	67004171		Pillar (rt)	10	Appelez-nous	-
15	67004177		Gasket, Temp. Control	10	Appelez-nous	-
16	67004249		Seal, Crisper Frame (rear)	10	Appelez-nous	-
17	67004133		Roller, Pan	10	Appelez-nous	-
18	67004174		Pin, Roller	10			$ 6.11
19	67004175		Housing, Temp. Control	10	Appelez-nous	-
20	67004176		Slide, Temp. Control	10	Appelez-nous	-
