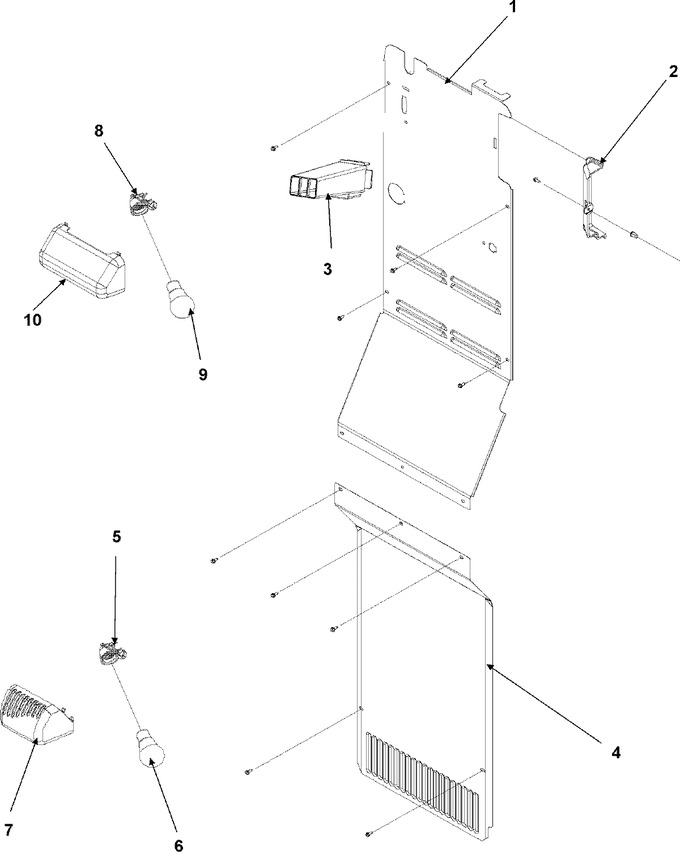

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004382		Back, Inner Fz	10	Appelez-nous	-
1	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.95
2	12583101		Cover, Supply Air	10	Appelez-nous	-
2	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.95
2	M0580205		Grommet, Screw	10	Appelez-nous	-
3	67003581		Duct, Quick Ice	10	Appelez-nous	-
4	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 6.95
4	67004192		Cover, Evap	10	Appelez-nous	-
5	W11447232		Socket, Light   (Replaces: 67005016)	10		Immediately	$ 13.21
6	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)	10		Immediately	$ 11.75
7	67004135		Shield, Fz Light	10	Appelez-nous	-
8	W11447232		Socket, Light   (Replaces: 67005016)	10		Immediately	$ 13.21
9	WP67002552		Bulb, Light (40w-250v)   (Replaces: 67002552)	10		Immediately	$ 11.75
10	67001507		Shield, Crisper Light	10	Appelez-nous	-
