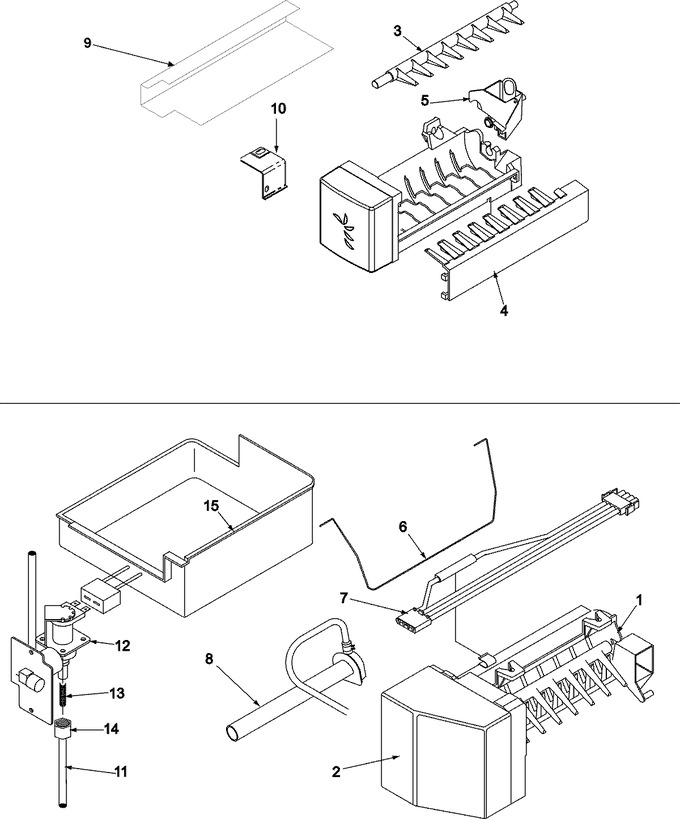

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98165 | Screw, Sm (Replaces: 67004822) | 10 |
|
$ 8.57 | ||||
| 1 | WPW10190972 | Ice Maker Assy. (220v-50hz)x (Replaces: D7846305) | 10 |
|
$ 177.49 | ||||
| 2 | WPW10289690 | Cover, Ice Maker (Replaces: 67004710) | 10 |
|
Immediately | $ 8.82 | |||
| 3 | WP627843 | Ejector, Ice (Replaces: 95101-1) | 10 |
|
$ 87.78 | ||||
| 4 | WP2182124 | Stripper, Ice (Replaces: 95102-1) | 10 |
|
$ 90.35 | ||||
| 5 | WP628356 | Inlet, Water (Replaces: 95100-1) | 10 |
|
$ 53.75 | ||||
| 6 | 12671401Q | Im Arm/wire Assy | 10 |
|
- | ||||
| 7 | W10150036 | Harness, Ice Maker (Replaces: 67002281) | 10 |
|
- | ||||
| 8 | 67003663 | Elbow, Fill Tube | 10 |
|
- | ||||
| 9 | WP489128 | Screw, Bracket (Replaces: 95108-1) | 10 |
|
$ 11.40 | ||||
| 9 | D7846203 | Shield, Ice Maker | 10 |
|
- | ||||
| 10 | WP2256087 | Brkt, Ice Maker (Replaces: 67005026) | 10 |
|
$ 97.65 | ||||
| 11 | WPB5705307 | Tube, Plastic 74.5`` X (Replaces: B5705328) | 10 |
|
$ 13.05 | ||||
| 11 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) | 10 |
|
Immediately | $ 8.21 | |||
| 12 | 67002250 | Valve, Water | 10 |
|
- | ||||
| 13 | A1055105 | Spring, Anti Kink | 10 |
|
- | ||||
| 14 | WP627018 | Nut, Sleeve (Replaces: 67003190) | 10 |
|
$ 11.51 | ||||
| 15 | WP67001255 | Pan, Ice (Replaces: 10476207) | 10 |
|
$ 213.23 | ||||
| NI | 67006022 | Instrustions, Installation | 10 |
|
- | ||||
| NI | 67005031 | Coupling | 10 |
|
- | ||||
| NI | 12918001 | Funnel, Fill Tube (Replaces: 67005603) | 10 |
|
Immediately | $ 13.03 | |||
| NI | 67006425 | Screw, Sm (Replaces: M0238642) | 10 |
|
Immediately | $ 7.30 | |||
| NI | W10833902 | Clamp, Tube (Replaces: M0108105) | 10 |
|
$ 11.54 | ||||
| NI | WPM0114003 | Clip, Speed (Replaces: M0114003) | 10 |
|
$ 11.60 |
