SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan/cris Lt/filter


06 - Evaporator & Rollers


07 - Freezer Compartment


08 - Freezer Door


09 - Freezer Shelves


10 - Handles


11 - Hinges & Toe Grille


12 - Optional Ice Maker Kit Ic510s


13 - Refrigerator Door


14 - Refrigerator Shelves


15 - Supplemental Information


16 - Wiring Information

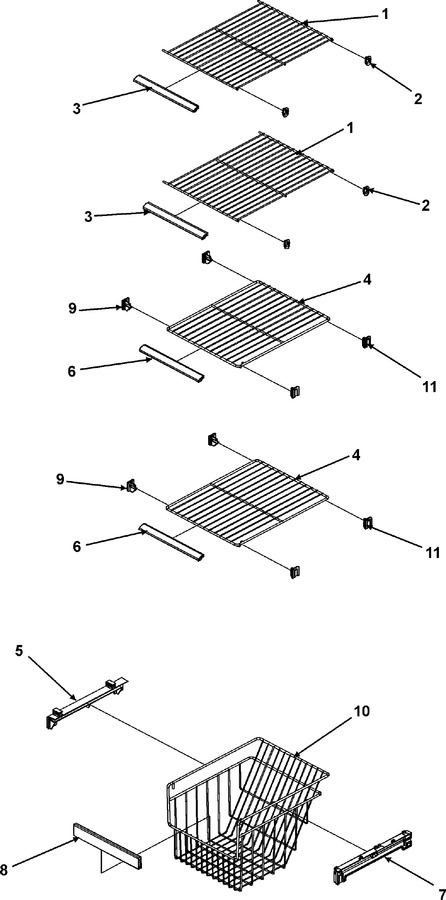

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67003895		Shelf, Upr Frz	10	Appelez-nous	-
2	C8973801		Support, Frz Shelf	10			$ 8.35
3	12314102		Trim, Basket/shelf	10	Appelez-nous	-
4	67004691		Shelf, Lwr Frz	10	Appelez-nous	-
5	67004317		Rail, Basket (lt)	10	Appelez-nous	-
6	12314101		Trim, Basket/shelf	10	Appelez-nous	-
7	67004319		Rail, Basket (rt)	10	Appelez-nous	-
8	67004252		Trim, Fz Basket	10	Appelez-nous	-
9	12015002		Support, Shelf (lt)	10			$ 7.38
10	67004320		Basket, Lw Fz	10	Appelez-nous	-
11	WP10941102		Support, Shelf (rt)	10			$ 11.81
