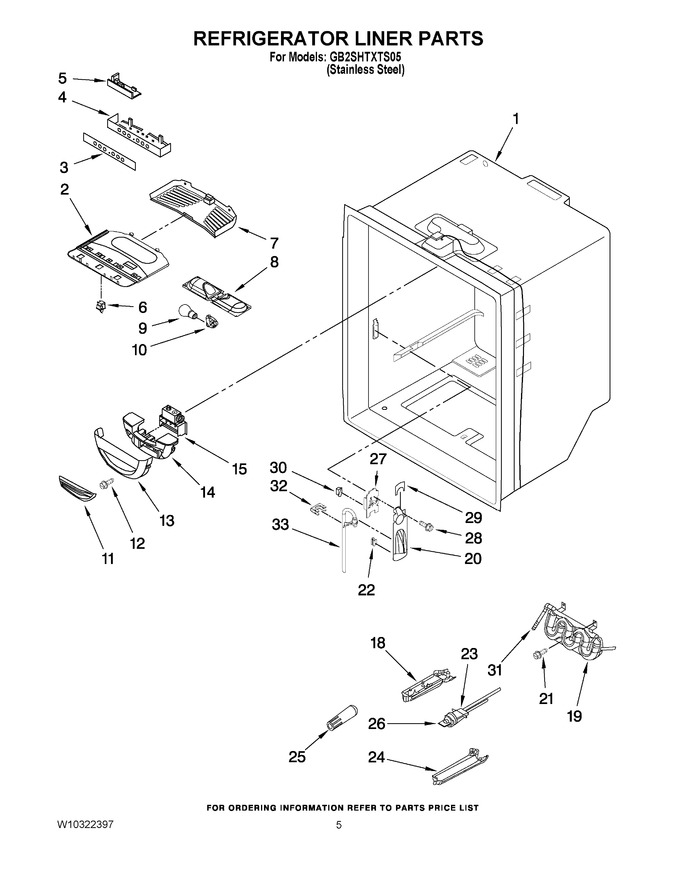

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 12806301 | Bracket, Control And Lights |
|
- | |||||
| 3 | W10207256 | Overlay |
|
$ 70.86 | |||||
| 4 | WPW10464769 | Housing, Electronic Control (Replaces: 12806406) |
|
Immediately | $ 108.34 | ||||
| 5 | WPW10503278 | Electronic Control (Replaces: 12784415V) |
|
Immediately | $ 55.44 | ||||
| 6 | W11384469 | Switch, Light (Replaces: C3680310V) |
|
Immediately | $ 37.23 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 12806501) |
|
$ 100.97 | |||||
| 8 | 12806601 | Housing, Light (Replaces: 12806601V) |
|
$ 104.95 | |||||
| 9 | W11679940 | Bulb, Light (2) (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 10 | W11447232 | Socket, Light (2) (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 11 | 67003900 | Insert, Damper Cover` (Replaces: 12806801) |
|
Immediately | $ 8.14 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 12.16 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 113.00 | |||||
| 14 | W11750607 | Insulation (Replaces: 13012402) |
|
$ 47.76 | |||||
| 15 | WPW10196393 | Control, Damper (Replaces: W10196393) |
|
Immediately | $ 166.07 | ||||
| 18 | WP67001668 | Plate (Replaces: 12704801) |
|
Immediately | $ 15.95 | ||||
| 19 | 12706111 | Tank, Water |
|
- | |||||
| 20 | 12706909SP | Dispenser |
|
$ 21.04 | |||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 22 | B8390302SP | Clip |
|
- | |||||
| 23 | W11808483 | Housing, Filter Head (Replaces: 12590620) |
|
$ 154.88 | |||||
| 24 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 25 | EDR4RXD1B | Filter, Water (Replaces: UKF8001) |
|
Immediately | $ 49.99 | ||||
| 26 | W11395888 | Head, Filter Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 27 | 12707303SP | Plate, Switch |
|
$ 76.59 | |||||
| 28 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 29 | W11519867 | Cover (Replaces: 12707005) |
|
Immediately | $ 26.35 | ||||
| 30 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 68.90 | |||||
| 31 | WP2300868 | Union (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 32 | 67002816 | Clip, Water (Replaces: 12251001SP) |
|
$ 18.24 | |||||
| 33 | W11677725 | Guide, Water (Replaces: 12707205SP) |
|
Immediately | $ 23.58 | ||||
| NI | W11619328 | Harness, Controls (refrigerator) (Replaces: 12868701) |
|
Immediately | $ 95.67 |
