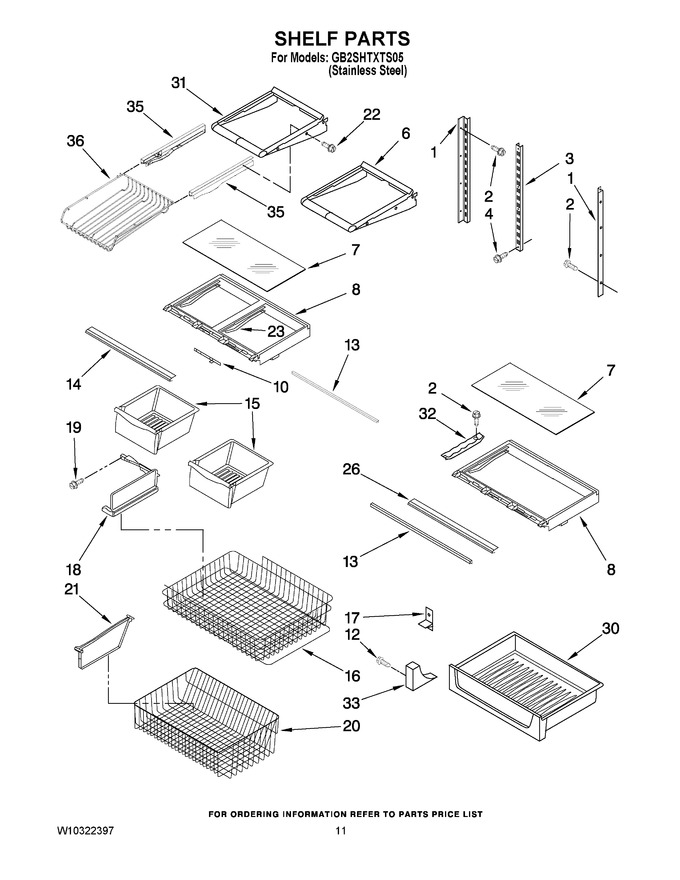

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251969 | Ladder, Side |
|
$ 29.94 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 28.20 | |||||
| 4 | W10215666 | Screw |
|
$ 9.08 | |||||
| 6 | W11402521 | Shelf, Glide (Replaces: 12463310) |
|
$ 220.55 | |||||
| 7 | WP67006878 | Glass (2) (Replaces: 12204822) |
|
Immediately | $ 185.19 | ||||
| 8 | WPW10568041 | Frame, Crisper (Replaces: 12530401SP) |
|
Immediately | $ 137.23 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.81 | ||||
| 12 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 13 | WP12227303WD | Support, Frame (2) (Replaces: 12227303WD) |
|
$ 105.95 | |||||
| 14 | WPW10231482 | Trim, Crisper (Replaces: W10231482) |
|
$ 113.05 | |||||
| 15 | WP67002633 | Pan, Crisper (2) (Replaces: 12530505) |
|
Immediately | $ 149.12 | ||||
| 16 | 12896402 | Basket, Freezer (upper) |
|
- | |||||
| 17 | WP67001716 | Hook, Ladder (Replaces: 12531802) |
|
Immediately | $ 10.61 | ||||
| 18 | 12693802N | Divider, Upper Basket |
|
- | |||||
| 19 | 12990601N | Screw |
|
- | |||||
| 20 | 13016002 | Basket, Freezer (lower) |
|
$ 130.75 | |||||
| 21 | 12659608 | Divider, Lower Basket |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 12990302SP) |
|
Immediately | $ 14.02 | ||||
| 23 | WPW10671238 | Rail, Center (Replaces: 12530701) |
|
Immediately | $ 112.82 | ||||
| 26 | W10656986 | Trim-pantry Front (Replaces: W10231334) |
|
$ 118.21 | |||||
| 30 | W10328327 | Drawer, Pantry (Replaces: 12645024) |
|
$ 152.64 | |||||
| 31 | 12463509SP | Shelf |
|
- | |||||
| 32 | WP67001719 | Track, Pantry (Replaces: 12531901) |
|
Immediately | $ 8.56 | ||||
| 33 | WP67001721 | Support, Pantry (left) (Replaces: 12531001) |
|
Immediately | $ 8.70 | ||||
| 33 | WP67001722 | Support, Pantry (right) (Replaces: 12531002) |
|
Immediately | $ 8.93 | ||||
| 35 | WP67001054 | Bracket, Glide (left) (Replaces: 12656601SP) |
|
Immediately | $ 8.40 | ||||
| 35 | WP67001053 | Bracket, Glide (right) (Replaces: 12656602SP) |
|
Immediately | $ 9.24 | ||||
| 36 | 12503808SP | Rack, Can |
|
$ 43.84 |
