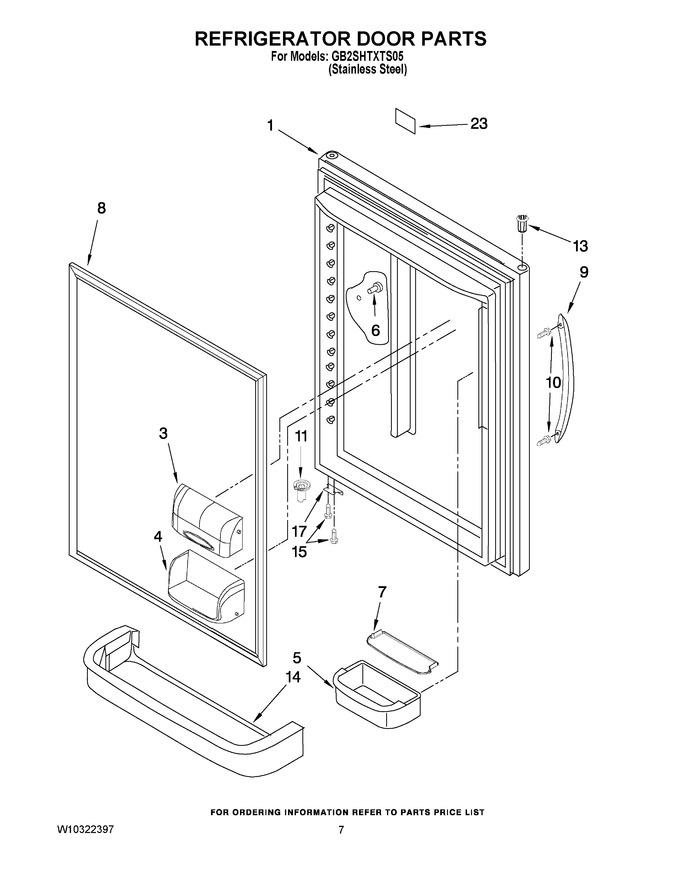

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107523SQ | Refrigerator Door (stainless Steel) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 78.73 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: 12849106V) |
|
Immediately | $ 73.55 | ||||
| 6 | WP12246610 | Plug, Handle Hole (white) (Replaces: 12246606) |
|
Immediately | $ 7.76 | ||||
| 7 | 12567307SP | Mat (gripper) |
|
- | |||||
| 8 | WPW10436248 | Door Gasket, Magnetic (black) (Replaces: W10164035) |
|
$ 286.97 | |||||
| 9 | 2254600S | Door Handle (stainless Steel) |
|
$ 106.71 | |||||
| 10 | W10290759 | Screw |
|
$ 5.83 | |||||
| 11 | WP67003639 | Door Closure (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 13 | 67004978 | Bushing (black) (Replaces: 10961006B) |
|
$ 21.05 | |||||
| 14 | 12690502 | Retainer, Door |
|
$ 45.03 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 23 | 2220214 | Nameplate |
|
$ 32.43 |
