Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13092275SQ Freezer Door (stainless Steel) Appelez-nous -
2 2254600S Handle (stainless Steel) Special Order $ 106.71

4 WPW10436250 Gasket, Door (black)   (Replaces: W10164037) In-Stock Immediately $ 365.39

5 W10290759 Screw Special Order $ 5.83


    View Diagram in Separate Window     Print Icon   Print Part List

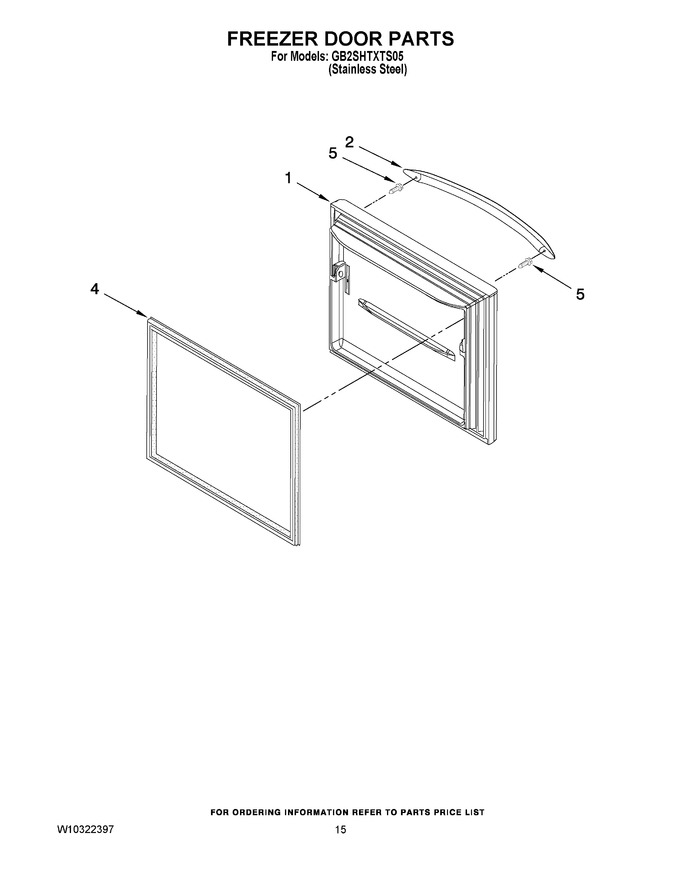

Diagram for GB2SHTXTS05
