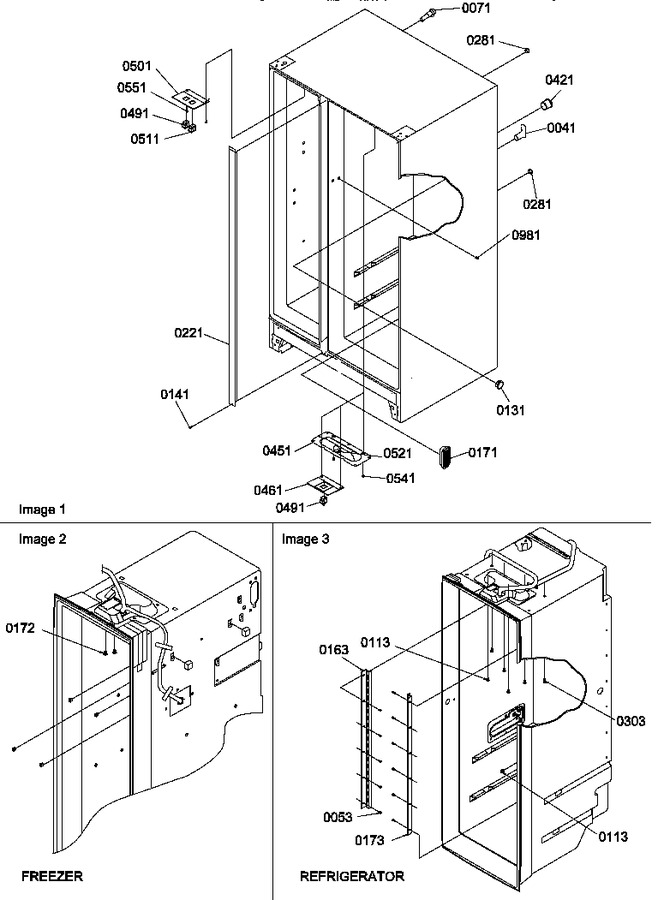

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
41	C8971903		Tunnel, Heat Exchanger		Appelez-nous	-
53	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
71	B8318803		Fill Tube Assy		Appelez-nous	-
113	M0580007		Grommet, Screw		Appelez-nous	-
131	10923101		Tunnel, Retainer		Appelez-nous	-
141	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
163	D7789808		Ladder, Cantilever		Appelez-nous	-
171	D7785401		Grille-rtn Air		Appelez-nous	-
172	M0580007		Grommet, Screw		Appelez-nous	-
173	D7789809		Ladder, Cantilever		Appelez-nous	-
221	Y00000000		See Note Vertical Mullion, White		Appelez-nous	-
281	A3080001		Plug, Button (blk)		Appelez-nous	-
303	M0581001		Grommet, Screw		Appelez-nous	-
421	10703701		Tunnel, Wire		Appelez-nous	-
451	D7716409		Housing-ref Light		Appelez-nous	-
461	D7297603		Cover, Light Sw		Appelez-nous	-
491	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
501	D7749002		Cover Light		Appelez-nous	-
511	18805		Switch   (Replaces: C3680306)				$ 21.59
521	B5733302		Clip, Ground		Appelez-nous	-
541	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
551	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
981	10426801		Clip, Air Tunnel		Appelez-nous	-
