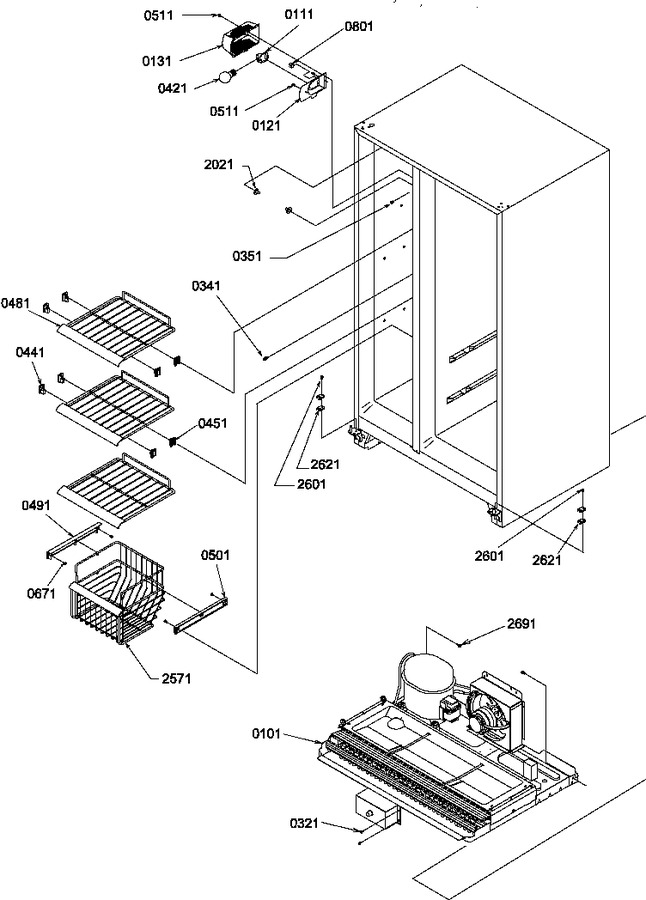

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	Y00000000		See Note Mc Assy -- (see Page 22 And 23 For Assy Breakdown)		Appelez-nous	-
111	D7714404		Socket-light		Appelez-nous	-
121	D7753503		Plate-light Socket		Appelez-nous	-
131	D7786601		Shield, Frz Light		Appelez-nous	-
321	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
341	M0322202		Tie Wire		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
441	12015002		Support, Shelf (lt)				$ 7.38
451	WP10941102		Support, Shelf (rt)				$ 11.81
481	12012603		Shelf, Stat. Freezer		Appelez-nous	-
491	12015101		Rail, Shelf (lt)		Appelez-nous	-
501	10972801		Rail, Shelf (rt)		Appelez-nous	-
511	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
671	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
801	B5733302		Clip, Ground		Appelez-nous	-
2021	M0560005		Support		Appelez-nous	-
2571	12012001		Basket, Freezer		Appelez-nous	-
2601	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
2621	B8387703		Shim, Door Closure		Appelez-nous	-
2691	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
