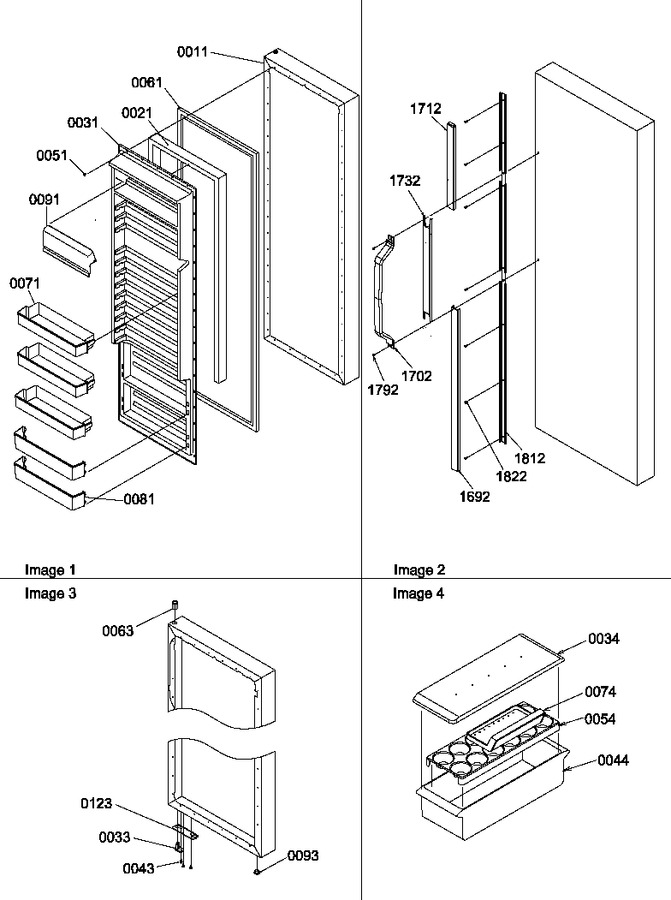

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 10937904W | Ass`y, Ref Dr Foam |
|
- | |||||
| 21 | B0523563 | Insulation Ft. K |
|
- | |||||
| 31 | 10946301 | Liner, Ref Door |
|
- | |||||
| 34 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 44 | 10423128 | Bin-utility |
|
- | |||||
| 51 | M0219730 | Screw |
|
$ 7.65 | |||||
| 54 | 10436505 | Tray, Egg |
|
- | |||||
| 61 | 10359705 | Gasket, Door (w Ref) |
|
- | |||||
| 71 | 10937303 | Bucket Ref. |
|
- | |||||
| 74 | 10310901 | Tray, Butter |
|
- | |||||
| 81 | 10580104 | Shelf, Ref Door |
|
- | |||||
| 91 | 10418503 | Door-dairy |
|
- | |||||
| 93 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 1692 | D7792812 | Trim, Lower Refr Dr (black) |
|
- | |||||
| 1702 | D7815915 | Ass`y, Dr Hndl Blk |
|
- | |||||
| 1712 | D7852021 | Trim-bk Top Ref Dr |
|
- | |||||
| 1732 | D7853808 | Trim, Center Refr Dr. Black |
|
- | |||||
| 1792 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 10.58 | |||||
| 1812 | D7793202 | Ref. Trim, Retainer |
|
- | |||||
| 1822 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 |
