Diagram # Part Number Description Series Availability Ships Price Add to Cart
22 D7718402 Seal Crisper Appelez-nous -
23 C8913560 Trim-front Shelf Appelez-nous -
32 10523402 Seal, Crisper Frt Appelez-nous -
33 C8913621 Trim-gl Shelf Rear Appelez-nous -
42 10519307 Band, Crisper Appelez-nous -
43 Y10370052 Glass, Shelf Appelez-nous -
52 10289908 Slide Crisper Control Appelez-nous -
53 D7871031 Assy, Glass Shelf Appelez-nous -
62 Y10370045 Glass, Shelf Appelez-nous -
62 10370046 Glass, Shelf Appelez-nous -
82 10470102 Frame, Crisper Appelez-nous -
82 10470101 Frame, Crisper Appelez-nous -
91 12156201 Socket, Dual Lamp Appelez-nous -
92 10524320 Trim-crisp Top Front Appelez-nous -
92 10524321 Trim-crsip Top Front Appelez-nous -
181 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

211 WP4373559 Union K   (Replaces: B5706901) Special Order $ 81.22

251 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

311 10014717 Shield, Light Appelez-nous -
351 M0580007 Grommet, Screw Appelez-nous -
421 40A15 Bulb, Light (40 Watt)   (Replaces: A0282803) In-Stock Immediately $ 1.98

511 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

561 12016501 Deflector-air Appelez-nous -
761 10279143 Assy, Glass Shelf Appelez-nous -
1291 M0108001 Clamp, Tube Appelez-nous -
1631 B8389007 Shim, Top Hinge Appelez-nous -
1661 10126601 Foil, Hinge Cover V/a Appelez-nous -
1671 10126402 Cover Hinge Black Appelez-nous -
1761 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 7.55

1801 10185101 Top Hinge-e Ct Appelez-nous -
1881 10471910 Pan-crisper Appelez-nous -
1891 10543744 Up Crisp Frm Assy Appelez-nous -
1901 10543743 Lw Crisp Frm Assy Appelez-nous -
2121 W11214483 Screw, Mach   (Replaces: M0202321) Special Order $ 14.72

2131 10493202 Cover, Ref. Light Appelez-nous -
2141 M0219546 Screw Appelez-nous -
2501 M0270508 Washer Appelez-nous -
2581 10111208 Bucket-frz Dr Appelez-nous -
2731 10164702 Control-air Appelez-nous -
2741 10164812 Grille-control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

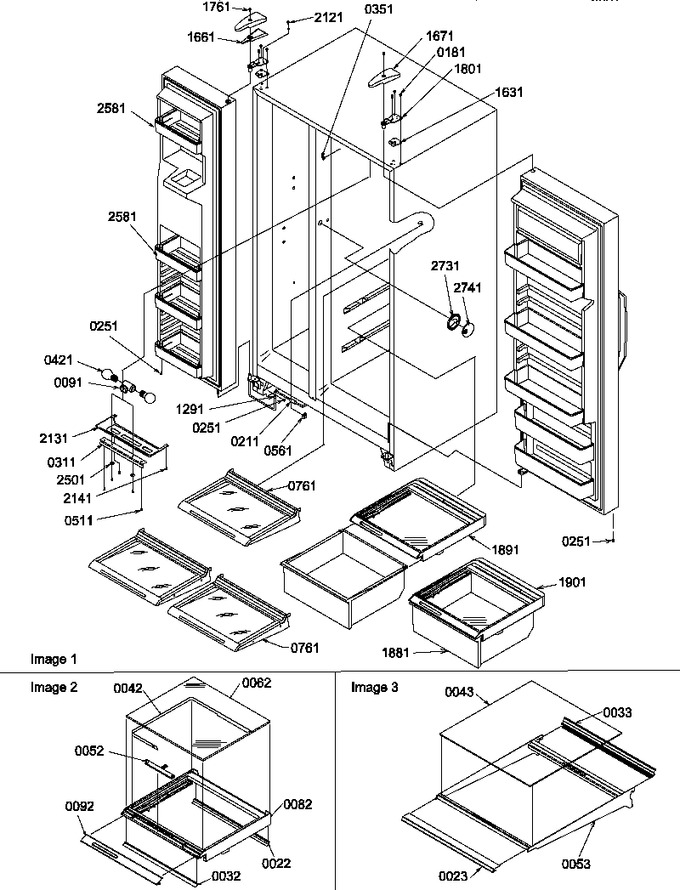

Diagram for GSGD21BW (BOM: P1193905W W)
