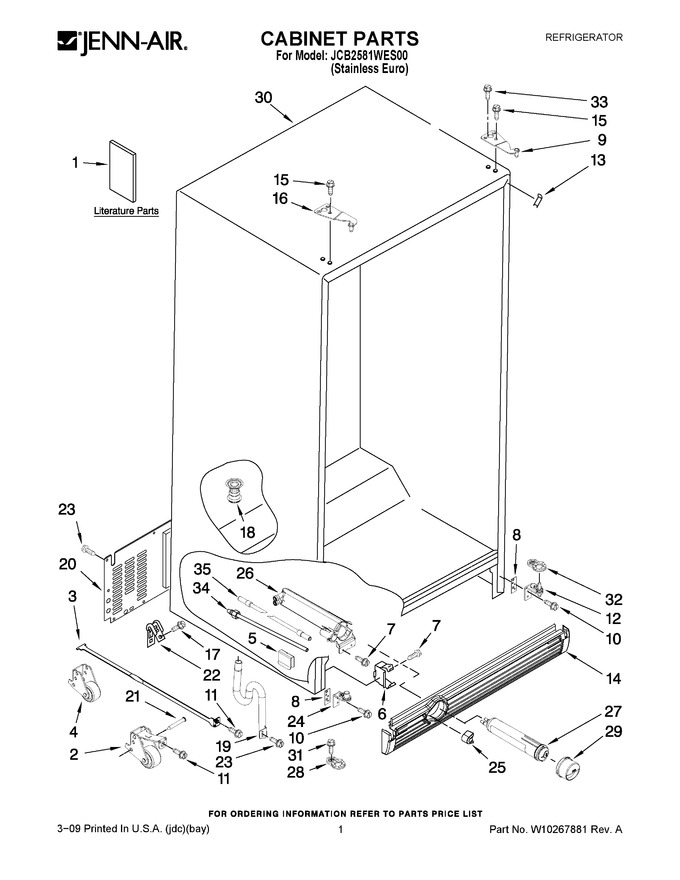

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10168304		Use & Care Guide		Appelez-nous	-
1	W10142175		Service & Wiring Sheet		Appelez-nous	-
1	2318477		Installation Instructions		Appelez-nous	-
1	W10252507		Energy Guide		Appelez-nous	-
2	W10199223		Front Roller Asm (right Side)				$ 43.06
2	W10199222		Front Roller Asm (left Side)				$ 36.32
3	W10199260		Strap, Roller		Appelez-nous	-
4	W10173132		Roller, Rear (2)				$ 31.84
5	W11545866		Clip, Retainer (4)   (Replaces: 2223388)				$ 11.31
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	W11594405		Screw   (Replaces: 981126)			Immediately	$ 18.21
8	2223545		Shim				$ 84.03
9	2307008AP		Hinge Top, Rc (apollo Grey)				$ 159.62
10	W10151272		Screw				$ 11.67
11	WPW10141625		Screw   (Replaces: W10141625)				$ 21.16
12	2307179		Hinge Assembly, Bottom-rc (includes No.34)				$ 50.88
13	2223893AP		Filler, Wrapper (apollo Grey)		Appelez-nous	-
14	W10194061		Grille, Filter (midnight Grey)				$ 46.07
15	WP489478		Screw,   (Replaces: W10001260)				$ 7.75
16	2307007AP		Hinge, Top Fc (apollo Grey)				$ 158.03
17	W10142289		Screw				$ 9.15
18	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
19	2254566		Tube, Extension				$ 53.99
20	2223409		Cover, Unit				$ 77.44
21	2223387		Pin, Roller (4)		Appelez-nous	-
22	549193		Clamp, Service Cord				$ 13.39
23	W10154233		Screw				$ 7.75
24	2307152		Hinge Assembly, Bottom-fc (includes 28 & 31)				$ 36.02
25	2260503MG		Button, Water Filter (midnight Grey)				$ 27.01
26	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
27	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
28	2307051		Door Closer, Fc				$ 73.51
29	WP2260518MG		Cap, Water Filter (midnight Grey)   (Replaces: 2260502MG)				$ 56.03
31	WP489478		Screw,   (Replaces: W10001260)				$ 7.75
32	2307049		Door Closer, Rc				$ 5.84
33	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
34	WPW10350006		Tube, Filter Outlet   (Replaces: 2224020)				$ 115.54
35	8201597		Tube, Filter Inlet   (Replaces: 2319867)			Immediately	$ 77.02
