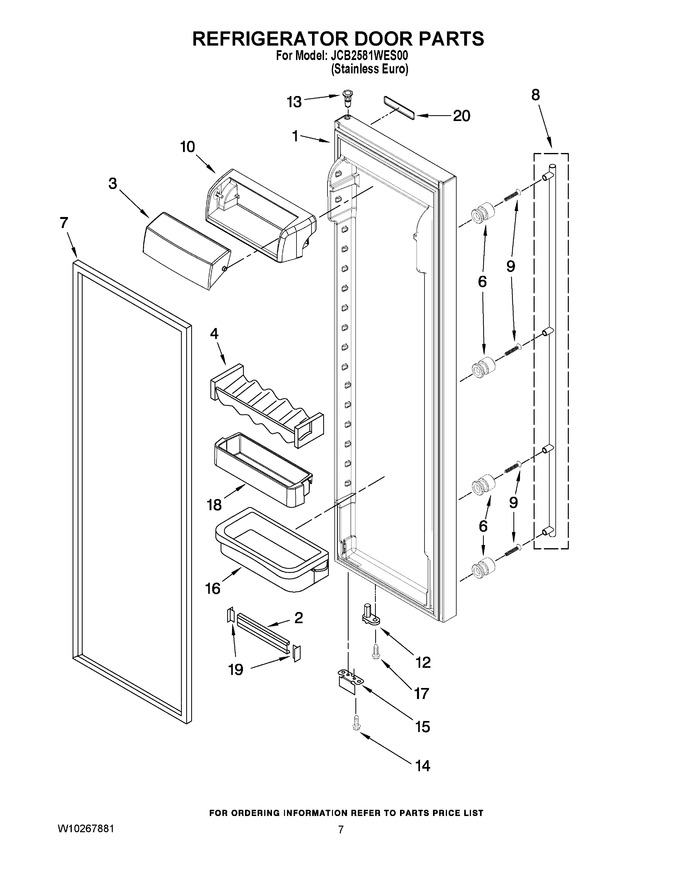

05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10173220SA		Refrigerator Door (includes No.7) (stainless Steel)		Appelez-nous	-
2	2203087		Trim, Shelf				$ 42.91
3	2255421		Dairy Door				$ 34.76
4	2223883		Caddy, Can				$ 34.98
6	12945201		Mount, Hdl (4)				$ 35.20
7	2326341		Door Gasket, Magnetic (apollo Grey)		Appelez-nous	-
8	12850925		Handle (stainless Euro)		Appelez-nous	-
9	W10160454		Screw, Mount (4)				$ 13.73
10	2223879		Dairy Compartment				$ 40.49
12	2307048		Thimble Cam, Rc		Appelez-nous	-
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
14	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
15	2306940		Bracket, Door Stop (chrome)				$ 97.08
16	WP2223860		Door Bin (3)   (Replaces: 2223860)			Immediately	$ 84.05
17	WP3400012		Screw   (Replaces: W10142285)				$ 7.82
18	WP2224173		Door Bin, Shallow   (Replaces: 2224173)				$ 87.32
19	WP2156006		Plug, Trim   (Replaces: 2156006)			Immediately	$ 12.18
20	12848704		Badge, Jenn-air (stainless Euro)				$ 60.12
