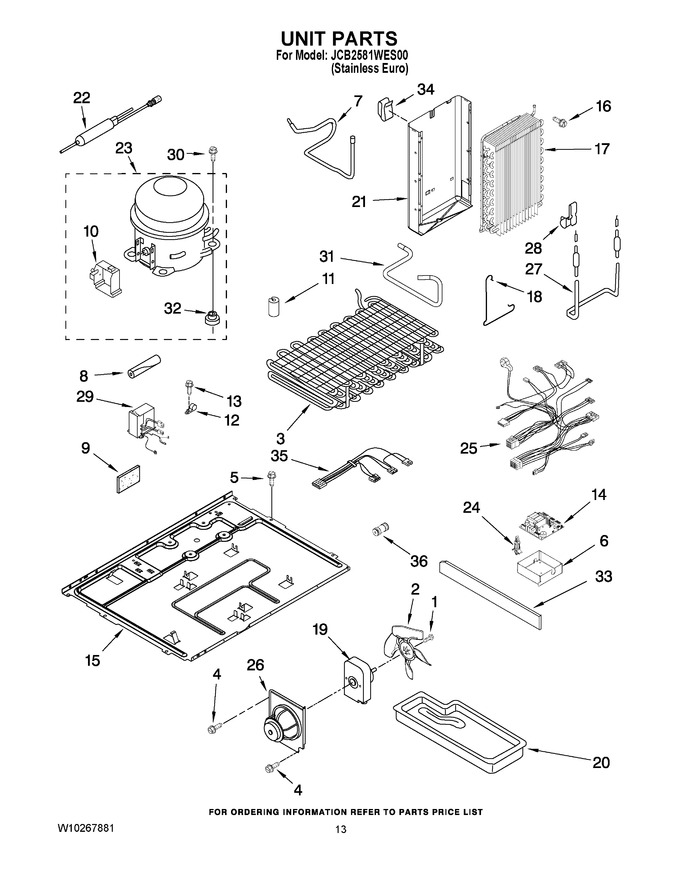

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 2 | WPW10139483 | Fan, Blade (Replaces: W10139483) |
|
$ 99.82 | |||||
| 3 | W10193018 | Condenser Assembly |
|
$ 347.20 | |||||
| 4 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 5 | WPW10141604 | Screw (6) (Replaces: W10141604) |
|
$ 8.85 | |||||
| 6 | 2223703 | Housing, Control Board |
|
$ 75.75 | |||||
| 7 | W10528579 | Tube Suction (Replaces: 2223351) |
|
$ 275.31 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | W11553819 | Insulation-sound (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 10 | 2215676 | Cover, Terminal |
|
$ 94.36 | |||||
| 11 | W10852725 | Grommet, Condenser (4) (Replaces: 2319835) |
|
$ 8.09 | |||||
| 12 | W11456069 | Clamp, Cable (Replaces: 2185788) |
|
Immediately | $ 22.40 | ||||
| 13 | WP489399 | Screw (Replaces: W10142231) |
|
$ 7.30 | |||||
| 14 | W10219463 | Electronic Control |
|
$ 291.62 | |||||
| 15 | 2306932 | Baseplate |
|
$ 158.02 | |||||
| 16 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 17 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 18 | 2161324 | Clamp |
|
- | |||||
| 19 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 20 | 2223398 | Tray, Evaporator |
|
- | |||||
| 21 | 2224022 | Heat Shield |
|
- | |||||
| 22 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 23 | 8201675 | Compressor (includes Items 10 & 32) (Replaces: W10183959) |
|
Immediately | $ 538.32 | ||||
| 24 | 2223800 | Spacer (5) |
|
$ 17.50 | |||||
| 25 | 2187849 | Harness, Main Control |
|
$ 211.12 | |||||
| 26 | 2224024 | Fan, Motor Bracket |
|
$ 56.36 | |||||
| 27 | 2323199 | Heater, Defrost |
|
$ 127.42 | |||||
| 28 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 29 | WPW10154805 | Inverter Box (Replaces: W10154805) |
|
Immediately | $ 397.69 | ||||
| 30 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 31 | W10181542 | Tube, Discharge |
|
- | |||||
| 32 | 876811 | Grommet (4) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 33 | 2223394 | Extension, Air Baffle |
|
- | |||||
| 34 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 35 | 2310119 | Unit Harness |
|
- | |||||
| 36 | WPW10334458 | Connector, Water Tube (Replaces: 2320322) |
|
$ 22.67 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 21.64 |
