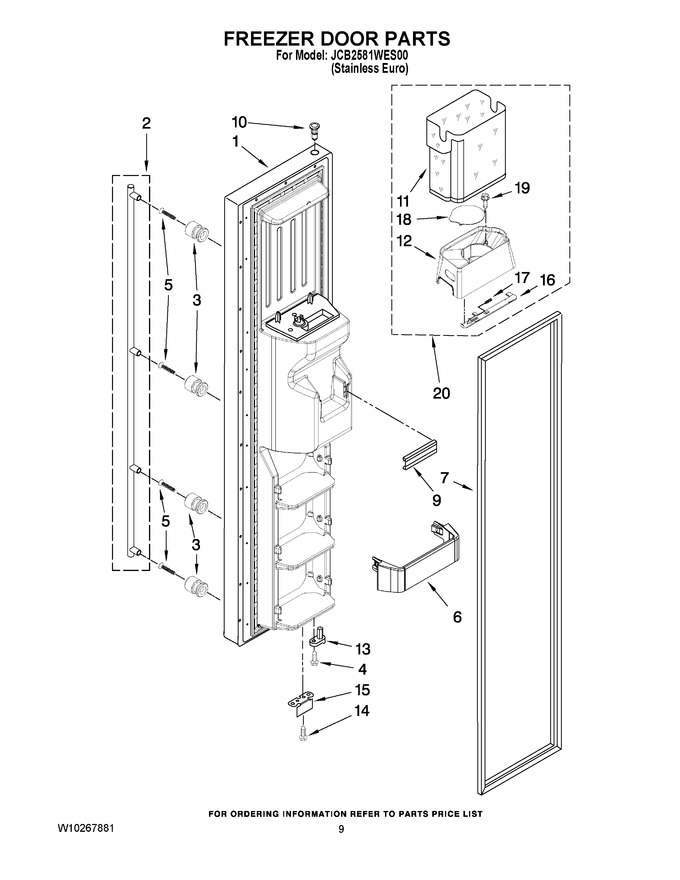

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10236440		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	12850924		Handle (stainless Euro)		Appelez-nous	-
3	12945201		Mount, Hdl (4)				$ 35.20
4	WP3400012		Screw   (Replaces: W10142285)				$ 7.82
5	W10160454		Screw, Mount (4)				$ 13.73
6	2223559		Shelf Bin (3)				$ 28.77
7	2326340		Door Gasket, Magnetic (apollo Grey)		Appelez-nous	-
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
11	2223317		Upper Bin				$ 74.94
12	W10162938		Lower Bin		Appelez-nous	-
13	2307050		Thimble Cam, Fc				$ 39.47
14	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.83
15	2306940		Bracket, Door Stop (chrome)				$ 97.08
16	2317272		Latch, Bin		Appelez-nous	-
17	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.19
18	W10131326		Cover, Crusher		Appelez-nous	-
19	WP3400065		Screw (2)   (Replaces: 3400065)			Immediately	$ 7.74
20	W10162937		Ice Container (complete)		Appelez-nous	-
