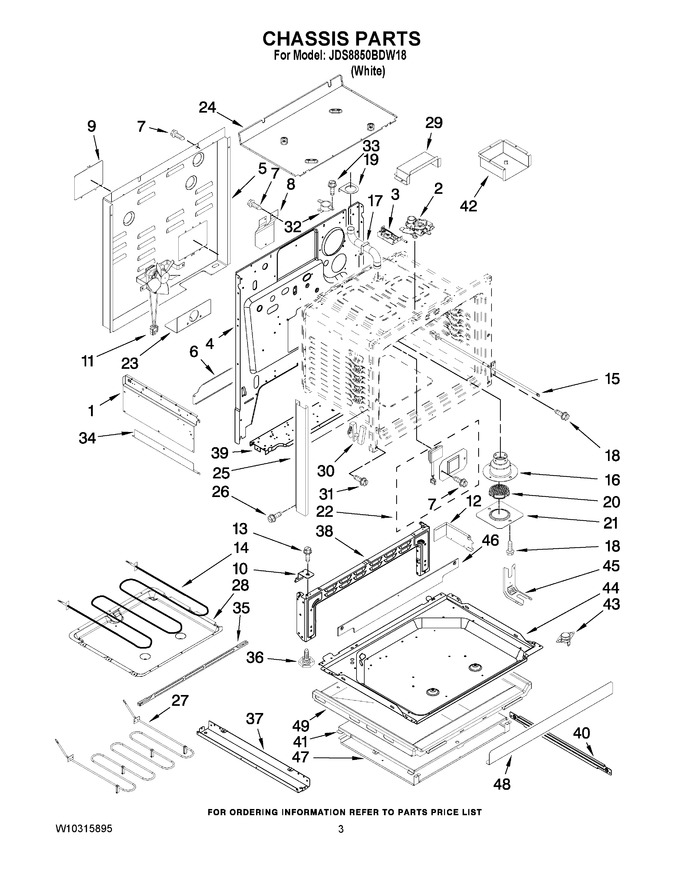

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2618F206-51		Panel, Shield (right)				$ 135.68
1	2618F201-51		Panel, Shield (left)				$ 32.51
2	74010819		Latch Assembly   (Replaces: 8002P089-60)				$ 360.32
3	WP7450P108-60		Light Switch Assy   (Replaces: 7450P109-60)			Immediately	$ 153.60
4	3804F313-51		Back, Main		Appelez-nous	-
5	4005F810-51		Cover, Wire Rear				$ 248.98
6	3826F066-51		Extension, Back				$ 7.82
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
8	7003P101-60		Insulator, Cord				$ 15.60
9	4005F612-51		Panel, Access				$ 46.13
10	3807F727-45		Support, Oven (bottom)				$ 18.96
11	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 318.60
11	3604F416-51		Shield, Lower Side				$ 59.21
12	3604F434-51		Shield, Warm Drawer Back		Appelez-nous	-
13	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.19
14	WP7406P430-60		Element, Broil   (Replaces: 7406P430-60)			Immediately	$ 157.55
15	12001656		Sensor, Oven   (Replaces: 7430P042-60)			Immediately	$ 43.94
16	8026P096-60		Tube, Vent Lower		Appelez-nous	-
17	8026P084-60		Tube, Vent Middle		Appelez-nous	-
18	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.19
19	3605F345-51		Holder, Vent Tube				$ 7.82
20	8034P008-60		Smoke Eliminator				$ 25.43
21	3605F354-45		Plate, Smoke Elm.				$ 65.19
22	7407P180-60		Light Assy Halogen		Appelez-nous	-
23	3801F911-51		Bracket, Power Supply				$ 9.09
24	4011F496-51		Bottom Burner Box		Appelez-nous	-
25	3608F138-71		Trim, Side (white)				$ 34.76
26	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.19
27	WP7406P411-60		Element, Bake   (Replaces: 7406P411-60)			Immediately	$ 337.68
28	3401F092-45		Pan, Hidden Bake				$ 97.82
29	4005F750-51		Cover, Door Latch		Appelez-nous	-
30	74011475		Hinge   (Replaces: 7106P143-60)			Immediately	$ 130.52
31	WP4159193		Screw, Hinge   (Replaces: 7101P282-60)				$ 4.77
32	7403P647-60		Switch, Hi-limit (140f-120f)				$ 36.31
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
34	3826F034-51		Extension, Shield		Appelez-nous	-
35	3807F754-45		Support, Element				$ 8.34
36	WP74010805		Leg, Leveling   (Replaces: 7101P660-60)				$ 7.19
37	4020W035-80		Pedestal, Bottom				$ 112.82
38	W10271711		Base, Pedestal				$ 144.40
39	3807F640-51		Support, Valve/reg				$ 31.03
40	WPW10293200		Glide, Drawer   (Replaces: W10293200)				$ 108.50
41	3604F324-51		Ext., Heat Shield		Appelez-nous	-
42	4005F807-51		Cover, Bnr Box		Appelez-nous	-
43	7403P657-60		Switch, Hi Limit (100f/85f)		Appelez-nous	-
44	3804F231-51		Retainer, Insul. (bottom)				$ 147.45
45	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
46	7713P054-60		Trim, Front Frame		Appelez-nous	-
47	3604F326-45		Shield,warming Dwr		Appelez-nous	-
48	4005F749-45		Cover, Front				$ 7.43
49	WP2205F060-19		Bottom, Oven   (Replaces: 2205F060-19)				$ 324.00
NI	7002P471-60		Insulation, Wrap		Appelez-nous	-
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P443-60		Insulation, Oven Bottom				$ 41.31
