View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Chassis Parts

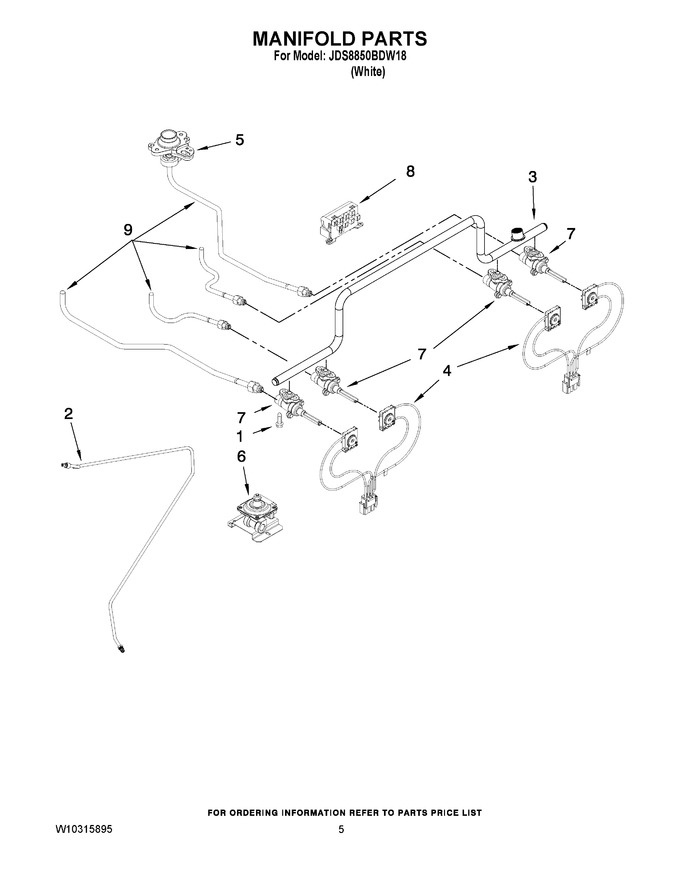

03 - Manifold Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F421-45 | Cover,ignitor Wire |
|
- | |||||
| 2 | 7506P489-60 | Tubing, Gas Supply |
|
$ 35.75 | |||||
| 3 | 7513P473-60 | Pipe, Manifold |
|
$ 343.13 | |||||
| 4 | WP74011647 | Switch, Regintion (lf/lr) (Replaces: 7450P003-60) |
|
$ 221.21 | |||||
| 4 | WP74011648 | Switch, Regintion (rf/rr) (Replaces: 7450P004-60) |
|
Immediately | $ 221.22 | ||||
| 5 | WP7527P004-60 | Orifice, Holder (rf 16k) (Replaces: 7527P004-60) |
|
$ 81.00 | |||||
| 5 | WP7527P061-60 | Orifice, Holder (lf 12k) (Replaces: 7527P061-60) |
|
$ 107.65 | |||||
| 5 | WP7527P002-60 | Orifice, Holder (rr/lf 9.2k) (Replaces: 7527P002-60) |
|
$ 81.00 | |||||
| 5 | 74009553 | Orifice, Holder (lr 5k) (Replaces: 7527P042-60) |
|
$ 83.63 | |||||
| 6 | 7510P101-60 | Valve, Regulator |
|
$ 151.00 | |||||
| 7 | 7502P470-60 | Valve, Top Burner (lr 5k) |
|
- | |||||
| 7 | 7502P471-60 | Valve, Top Burner (rr/lf 9.2k) |
|
- | |||||
| 7 | 7502P548-60 | Valve, Top Burner (rf 16k) |
|
- | |||||
| 7 | 7502P493-60 | Valve, Top Burner (dual Ring, Lf) |
|
$ 152.67 | |||||
| 8 | WPW10475147 | Spark Module (Replaces: 7431P038-60) |
|
Immediately | $ 238.24 | ||||
| 9 | 7506P445-60 | Tube, Burner (rf) |
|
$ 8.76 | |||||
| 9 | 7506P447-60 | Tube, Burner (rr) |
|
$ 10.22 | |||||
| 9 | 7506P448-60 | Tube, Burner (lr) |
|
$ 83.70 | |||||
| 9 | 7506P469-60 | Tubing, Inner Dual |
|
$ 8.36 | |||||
| 9 | 7506P470-60 | Tubing, Outer Dual |
|
$ 8.84 | |||||
| NI | 7507P419-60 | Spud, Lp Gas |
|
- |
