Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7801P173-60 Rack, Oven Special Order $ 55.72

2 3405W043-19 Drawer, Storage Special Order $ 177.18

4 2416F086-71 Panel, Drawer (white) Special Order $ 126.90

5 W11347848 Screw, Panel   (Replaces: 7101P376-60) Special Order $ 13.55

6 WPW10131078 Nut, Lock (10-24)   (Replaces: 7103P139-60) Special Order $ 4.44

7 7922P058-60 Glass, Drawer (white) Special Order $ 86.39

8 7408P086-60 Receptacle, Meat Probe Jack Special Order $ 33.43

9 7103P177-60 Nut Appelez-nous -
10 3604F435-51 Shield, Warming Drawer Appelez-nous -
11 2206F087-45 Body Warming Drawer Special Order $ 78.16

12 7406P294-60 Element, Warmer Appelez-nous -
13 7112P153-60 Clip Warmer Element Appelez-nous -
14 WP7430P038-60 Probe, Meat   (Replaces: 7430P038-60) Special Order $ 143.67


    View Diagram in Separate Window     Print Icon   Print Part List

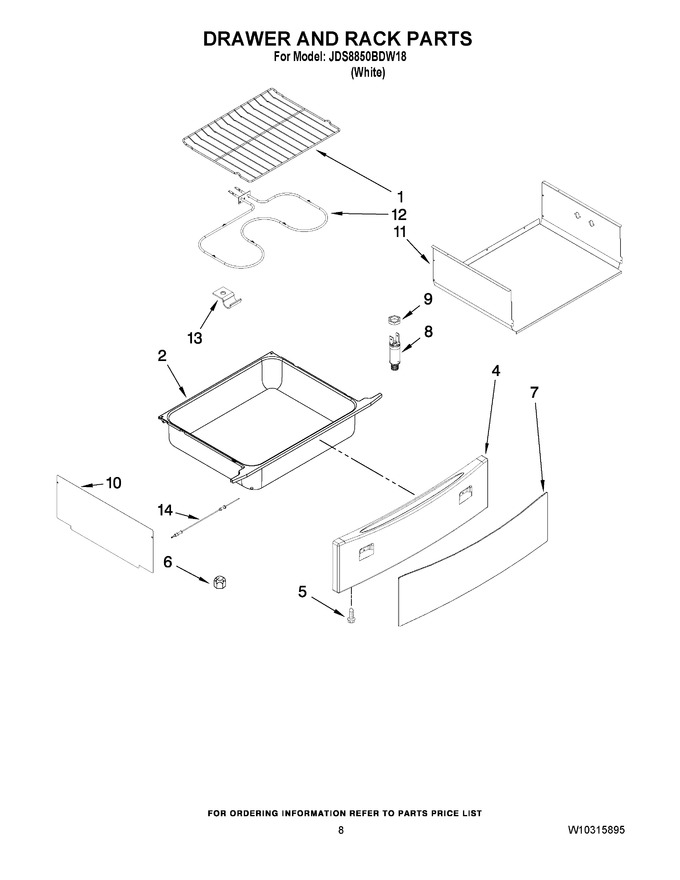

Diagram for JDS8850BDW18
