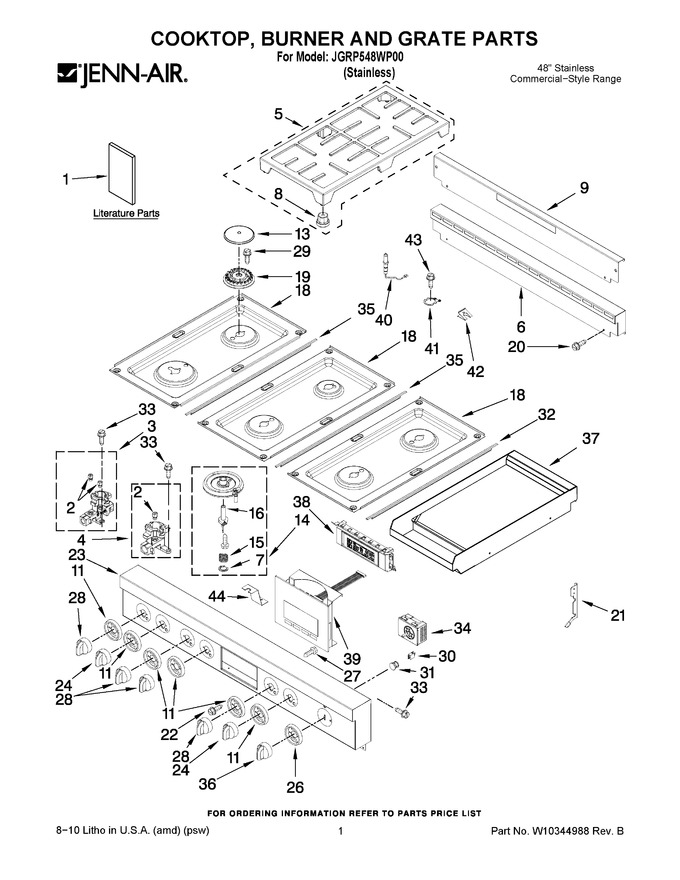

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - 30`` Oven Parts


04 - 18`` Oven Parts


05 - 48`` Chassis Parts


06 - Venting Parts


07 - 30`` Oven Door Parts


08 - 18`` Oven Door Parts


09 - 30`` Internal Oven Parts


10 - 18`` Internal Oven Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10323237		Tech Sheet (french)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10322721		Use & Care Guide		Appelez-nous	-
1	W10323236		Tech Sheet (english)		Appelez-nous	-
1	W10322719		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
2	W10791075		Orifice (cr)   (Replaces: W10282663)				$ 103.68
2	W10160179		Orifice (lf & Rf - High)				$ 75.77
2	W10160185		Orifice (lf & Rf - Low)				$ 73.54
2	W10160232		Orifice (lr & Cf & Rr)				$ 45.77
3	WPW10160187		Orifice Holder (dual - Lf & Rf)   (Replaces: W10160187)				$ 81.57
4	W10282659		Orifice Holder (cr)				$ 40.50
4	W10160234		Orifice Holder (lr & Cf & Rr)				$ 51.39
5	W11344501		Grate, Burner   (Replaces: W10276551)			Immediately	$ 218.28
6	W10323251		Trim, Island				$ 318.88
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10323252		Trim, Island Insert				$ 207.83
11	W10276494		Bezel				$ 80.42
13	WP8286816		Cap, Burner (cr)   (Replaces: 8286816)				$ 110.74
13	WPW10115952		Cap, Burner (lf & Rf)   (Replaces: W10115952)				$ 119.01
13	WPW10160229		Cap, Burner (lr & Cf & Rr)   (Replaces: W10160229)			Immediately	$ 114.80
14	WPW10320937		Base, Burner (lf & Rf)   (Replaces: W10320937)				$ 157.22
14	W10189082		Base, Burner (lr & Cf & Rr)		Appelez-nous	-
15	W10160826		Spring, Electrode		Appelez-nous	-
16	WPW10145991		Electrode (cr)   (Replaces: W10145991)			Immediately	$ 84.47
16	WPW10160235		Electrode (lr, Cf & Rr)   (Replaces: W10160235)				$ 42.08
16	W10250406		Electrode (lf & Rf (dual))				$ 30.27
18	W10189098		Cooktop (right)		Appelez-nous	-
18	W10272902		Cooktop (center)		Appelez-nous	-
18	W10189104		Cooktop (left)				$ 146.58
19	WPW10282515		Burner Head (cr)   (Replaces: W10282515)			Immediately	$ 149.87
19	WPW10250459		Burner Head (lf & Rf)   (Replaces: W10250459)			Immediately	$ 154.23
19	W10250458		Burner Head (lr & Cf & Rr)		Appelez-nous	-
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W10130759		Bracket, Moving Console (right)				$ 75.94
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
23	W10295787		Assembly, Console		Appelez-nous	-
24	W10145568		Knob, Control (dual - Lf & Rf)				$ 52.92
26	W10145453		Bezel, Griddle				$ 80.42
27	W11676349		Screw   (Replaces: 8286921)			Immediately	$ 14.76
28	W10145454		Knob, Control (4)				$ 46.94
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 14.74
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10294500		Lens, Indicator Light				$ 7.69
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
35	W10271524		Trim, T-strip				$ 212.34
36	W10145566		Knob, Griddle			Immediately	$ 51.66
37	W10625221		Module, Griddle   (Replaces: W10276498)				$ 1,457.32
38	WPW10145531		User Interface   (Replaces: W10145531)			Immediately	$ 311.25
39	W10335684		Keypad Assembly		Appelez-nous	-
40	W10854967		Electrode, Wire   (Replaces: 8286725)			Immediately	$ 48.38
41	8286930		Gasket, Orifice Holder				$ 95.73
42	8286863		Spring, Electrode				$ 76.92
43	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
44	3801F946-51		Bracket, Orifice Support		Appelez-nous	-
