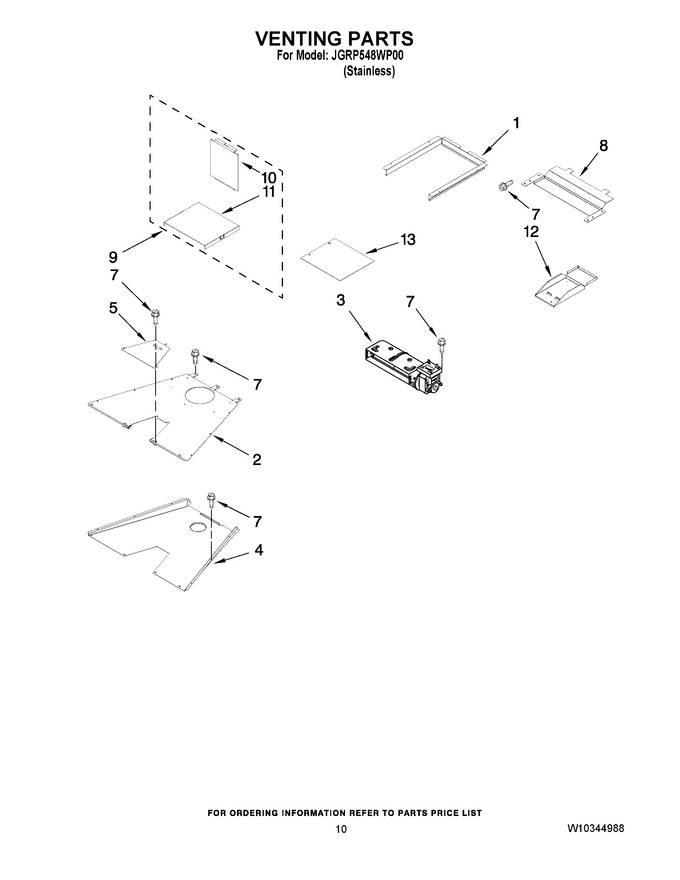

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10145364		Duct, Primary Air (18``)		Appelez-nous	-
1	W10145363		Duct, Primary Air (30``)		Appelez-nous	-
2	W10299182		Vent, Cooling Top (30``)			Immediately	$ 156.38
2	W10246081		Vent, Cooling Top (18``)		Appelez-nous	-
3	WPW10245511		Blower   (Replaces: W10245511)			Immediately	$ 306.02
4	W10349047		Vent, Cooling Bottom (18``)   (Replaces: W10246076)		Appelez-nous	-
4	W10349015		Vent, Cooling Bottom (30``)   (Replaces: W10299183)			Immediately	$ 203.33
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	W10145748		Bracket, Blower (30``)		Appelez-nous	-
8	W10160844		Bracket, Blower (18``)		Appelez-nous	-
9	W10340579		Chimney, Box Assembly (30``)   (Replaces: W10145684)		Appelez-nous	-
9	W10340583		Chimney, Box Assembly (18``)   (Replaces: W10145740)		Appelez-nous	-
10	W10246087		Insulation, Chimney		Appelez-nous	-
11	W10246086		Retainer, Chimney Insulation		Appelez-nous	-
12	W10249337		Support, Control		Appelez-nous	-
13	W10239444		Seal, Control		Appelez-nous	-
