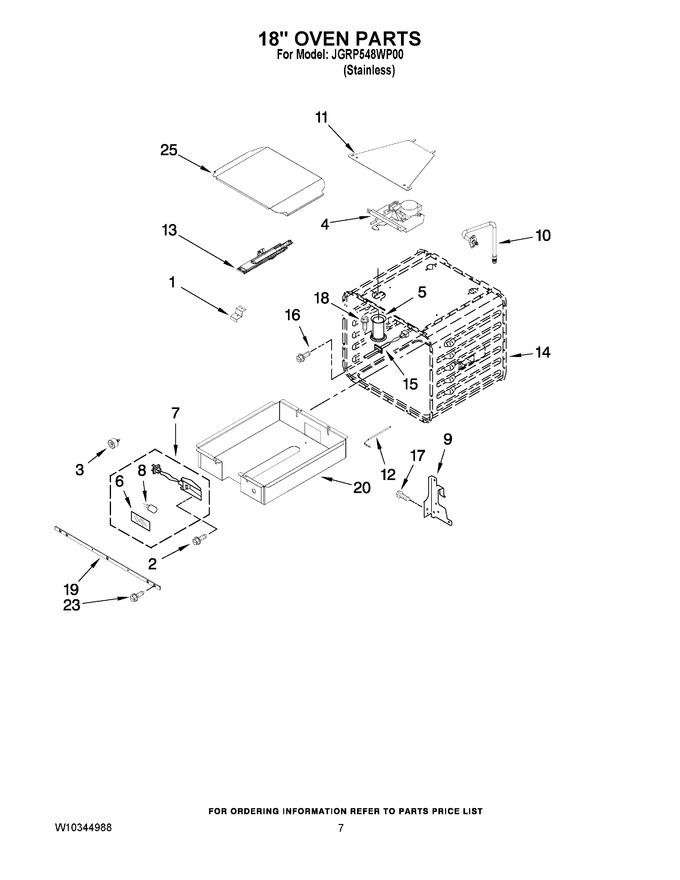

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10308041 | Bracket, Bake Burner |
|
- | |||||
| 2 | 4449748 | Screw |
|
$ 14.23 | |||||
| 3 | W10105790 | Assembly, Bumper |
|
$ 7.41 | |||||
| 4 | W11029221 | Latch, Motorized (Replaces: W10195935) |
|
Immediately | $ 327.65 | ||||
| 5 | W10145743 | Tube, Vent |
|
- | |||||
| 6 | W10169756 | Lens, Light |
|
$ 42.19 | |||||
| 7 | WPW10307114 | Oven Light Assy (Replaces: W10307114) |
|
Immediately | $ 116.01 | ||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 9 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 9 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 10 | W10145706 | Tube, Bake |
|
$ 202.86 | |||||
| 11 | W10160858 | Cover, Latch |
|
$ 76.94 | |||||
| 12 | W11448312 | Electrode, Bake (Replaces: W10332290) |
|
Immediately | $ 72.90 | ||||
| 13 | W10878505 | Burner, Bake W/o Spreader (Replaces: W10337289) |
|
Immediately | $ 221.07 | ||||
| 14 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 15 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 95.83 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 19 | W10340435 | Spacer, Oven Seal Assembly |
|
- | |||||
| 20 | W10145651 | Support, Bake Pan |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 25 | W10246100 | Gas Bake Cover |
|
- | |||||
| NI | W11688744 | Insulation, Wrap, 18`` (Replaces: W10282820) |
|
- | |||||
| NI | W11688776 | Insulation, Back, 18`` (Replaces: W10299353) |
|
- | |||||
| NI | W11688581 | Insulation, Bottom (Replaces: W10299355) |
|
- |
