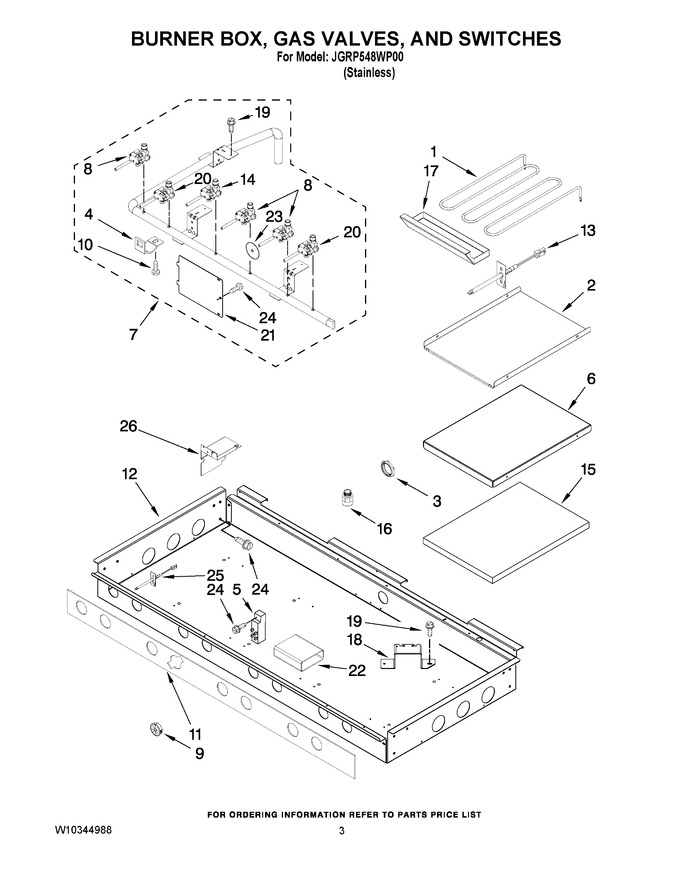

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193014		Element, Griddle				$ 323.46
2	W10145620		Tray-element, Griddle		Appelez-nous	-
3	W10115953		Nut, Burner				$ 9.78
4	W10189107		Bracket, Valve		Appelez-nous	-
5	WP71002749		Module, Spark   (Replaces: 7431P039-60)				$ 351.02
6	W10246074		Tray-insulation, Griddle		Appelez-nous	-
7	W10145509		Manifold		Appelez-nous	-
8	W10326645		Valve, Gas (lr & Cf & Rr)				$ 162.52
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw, Valve Mtg				$ 6.82
11	W11688741		Insulation, Burner Box   (Replaces: W10160202)		Appelez-nous	-
12	W10272893		Burner Box		Appelez-nous	-
13	W10319835		Sensor, Griddle				$ 239.28
14	WPW10385583		Valve, Gas (cr)   (Replaces: W10305286)			Immediately	$ 332.10
15	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
16	4453115		Adapter, 1/2`` Female				$ 126.70
17	W10276497		Drip Tray, Griddle				$ 404.03
18	W10115929		Bracket, Burner (lf,lr,cf,rf & Rr)		Appelez-nous	-
18	W10280796		Bracket, Burner (cr)		Appelez-nous	-
19	4450800		Screw				$ 13.47
20	WPW10371235		Valve, Gas (lf & Rf)   (Replaces: W10305287)			Immediately	$ 268.41
21	W10115843		Cover, Ignition		Appelez-nous	-
22	8287102		Insulation, Spark Module		Appelez-nous	-
23	W10189177		Seal, Switch Cover				$ 10.00
24	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
25	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
26	W10325491		Bracket, Spark Module		Appelez-nous	-
NI	W10145498		Tubing, Gas (cf)		Appelez-nous	-
NI	W10145491		Tubing, Gas (lr)		Appelez-nous	-
NI	W10145492		Tubing, Gas (cr)		Appelez-nous	-
NI	W10145499		Tubing, Gas (rf (high))		Appelez-nous	-
NI	W10145494		Tubing, Gas (lf (low))		Appelez-nous	-
NI	W10145496		Tubing, Gas (rf (low))		Appelez-nous	-
NI	W10145497		Tubing, Gas (lf (high))		Appelez-nous	-
NI	W10145493		Tubing, Gas (rr)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
