Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10253463 Installation Instructions Appelez-nous -
1 9762761 Safe Cooking Tips (english) Appelez-nous -
1 W10065852 Safe Cooking Tips (french) Appelez-nous -
1 W10235694 Wiring Diagram Appelez-nous -
1 W10235527 Use & Care Guide Appelez-nous -
1 8106P068-60 Card, Flow Tester Special Order $ 6.65

2 W10235921 Top, Main (black) Special Order $ 610.39

2 W10235815 Top, Main (white) Special Order $ 470.05

3 WP8273062 Screw   (Replaces: 7101P606-60) In-Stock Immediately $ 7.91

4 7504P204-60 Cap, Burner (black Rf) Appelez-nous -
4 WP8284669 Cap, Burner (black Rr)   (Replaces: 7504P202-60) In-Stock Immediately $ 75.59

4 7504P242-60 Cap, Burner (black, Dual Inner) Appelez-nous -
4 7504P243-60 Cap, Burner (black, Dual Outer) Appelez-nous -
4 7504P165-60 Cap, Burner (black(lr)) Appelez-nous -
5 7505P349-60 Burner, Head (lf Dual) Appelez-nous -
5 74007736 Burner, Head (rf)   (Replaces: 7505P306-60) In-Stock Immediately $ 117.07

5 7505P339-60 Burner, Head (rr) Special Order $ 57.66

5 74007735 Burner, Head (lr)   (Replaces: 7505P305-60) In-Stock Immediately $ 114.18

6 WP8273062 Screw   (Replaces: 7101P606-60) In-Stock Immediately $ 7.91

7 WP74009336 Ignitor, Cooktop   (Replaces: 7432P121-60) In-Stock Immediately $ 27.00

8 3424F039-09 Bowl, Burner Special Order $ 14.11

9 4005F789-09 Cover, Trim Special Order $ 109.65

10 7772P055-60 Grate (ctr., Grille) Appelez-nous -
10 7518P332-60 Grate (right Hand) Special Order $ 123.57

10 7518P338-60 Grate (left Hand) Appelez-nous -
11 74011741 Holder, Orifice (rr)   (Replaces: 7527P085-60) Special Order $ 193.47

11 WP7527P061-60 Holder, Orifice (lf)   (Replaces: 7527P061-60) Special Order $ 113.03

11 7527P087-60 Holder, Orifice (rf) Special Order $ 70.80

11 WP7527P086-60 Holder, Orifice (lr)   (Replaces: 7527P086-60) Special Order $ 189.78

13 3801F681-45 Bracket, Orifice Special Order $ 7.82

14 74010860 Locator, Grate   (Replaces: 8008P075-60) Special Order $ 10.57


    View Diagram in Separate Window     Print Icon   Print Part List

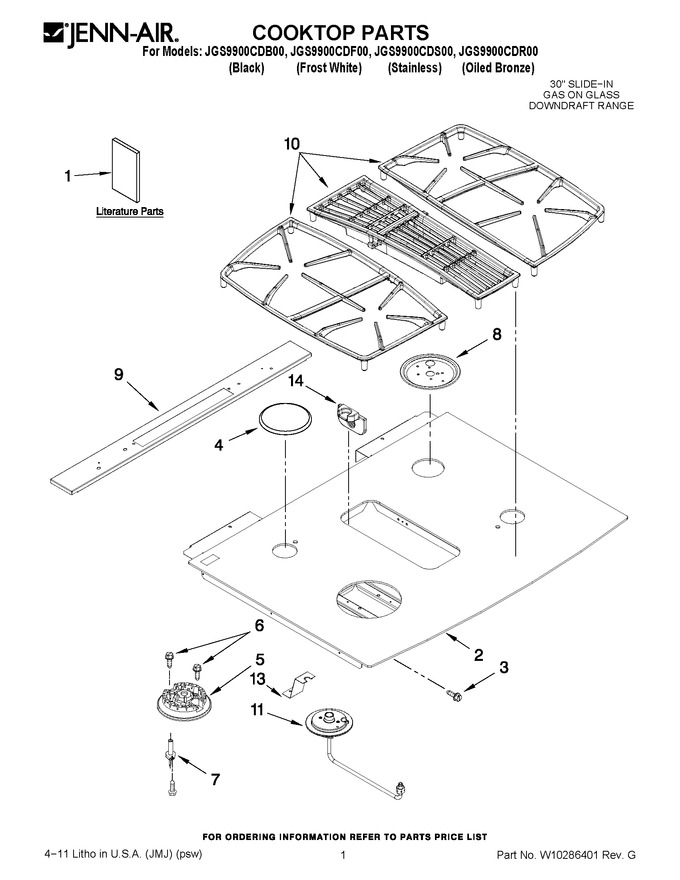

Diagram for JGS9900CDS00
