Diagram # Part Number Description Series Availability Ships Price Add to Cart
3 W10314419 Panel, Control W/ Overlay (stainless)   (Replaces: W10236224) Special Order $ 562.44

3 W10236210 Panel, Control W/ Overlay (black) Special Order $ 472.58

3 W10236218 Panel, Control W/ Overlay (white) Special Order $ 312.31

4 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 18.60

6 3604F446-45 Shield, Vent Appelez-nous -
7 WP8507P236-60 Control (gas)   (Replaces: 8507P236-60) Special Order $ 411.11

8 3604F433-51 Shield, Sight Special Order $ 31.44

9 4005F810-51 Cover, Rear Wire Special Order $ 248.98

10 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 7.55

11 3604F419-51 Shield, Wire Appelez-nous -
12 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 7.30

14 W10255424 Knob, Metal Special Order $ 34.81


    View Diagram in Separate Window     Print Icon   Print Part List

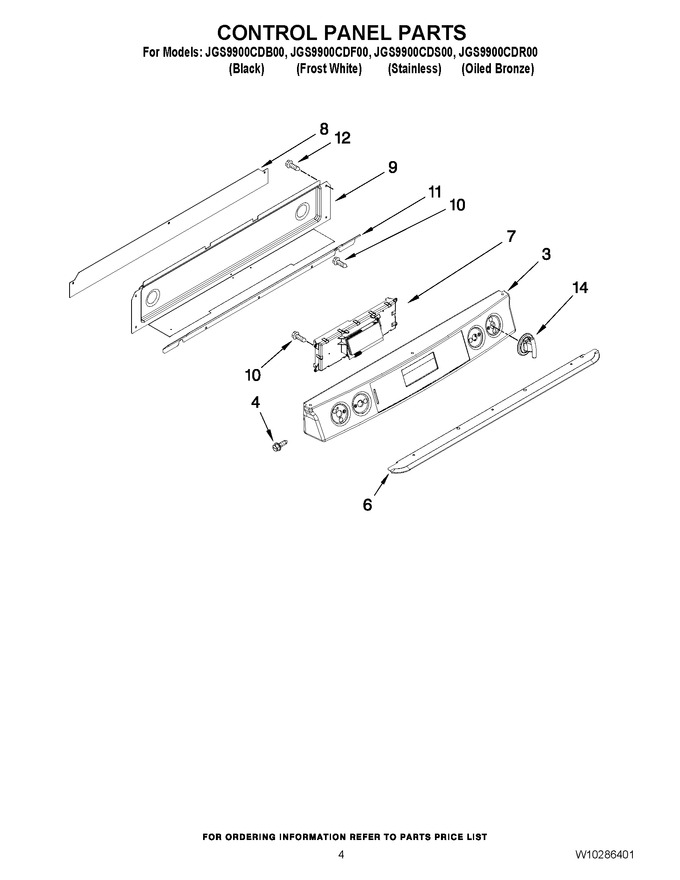

Diagram for JGS9900CDS00
