SELECT A DIAGRAM

Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Blower Unit Parts
02 - Blower Unit Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Manifold Parts
04 - Manifold Parts

Diagram for 05 - Chassis Parts
05 - Chassis Parts

Diagram for 06 - Door Parts
06 - Door Parts

Diagram for 07 - Drawer And Rack Parts
07 - Drawer And Rack Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2801W034-80 Assembly,plenum Appelez-nous -
2 2822W003-80 Blower, Scroll Appelez-nous -
3 4026F008-51 Ring, Inlet Special Order $ 7.43

4 WPW10201322 Motor, Blower   (Replaces: W10201322) Special Order $ 358.03

5 WPY707985 Wheel, Blower   (Replaces: 7114P005-60) In-Stock Immediately $ 161.72

6 7103P212-60 Nut Appelez-nous -
7 7109P082-60 Washer Appelez-nous -
8 8310P007-60 Filter, Grease Special Order $ 15.69

9 WP7402P104-60 Cord, Power   (Replaces: 7402P104-60) Special Order $ 61.73

10 4026F009-51 Ring, Restrictor Special Order $ 51.50

11 8038P003-60 Retainer Special Order $ 9.13

12 WP74010776 Gasket, Plenum   (Replaces: 7201P144-60) Special Order $ 74.30

13 4005F537-80 Cover, Plenum Appelez-nous -
14 3804F304-51 Retainer, Filter Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

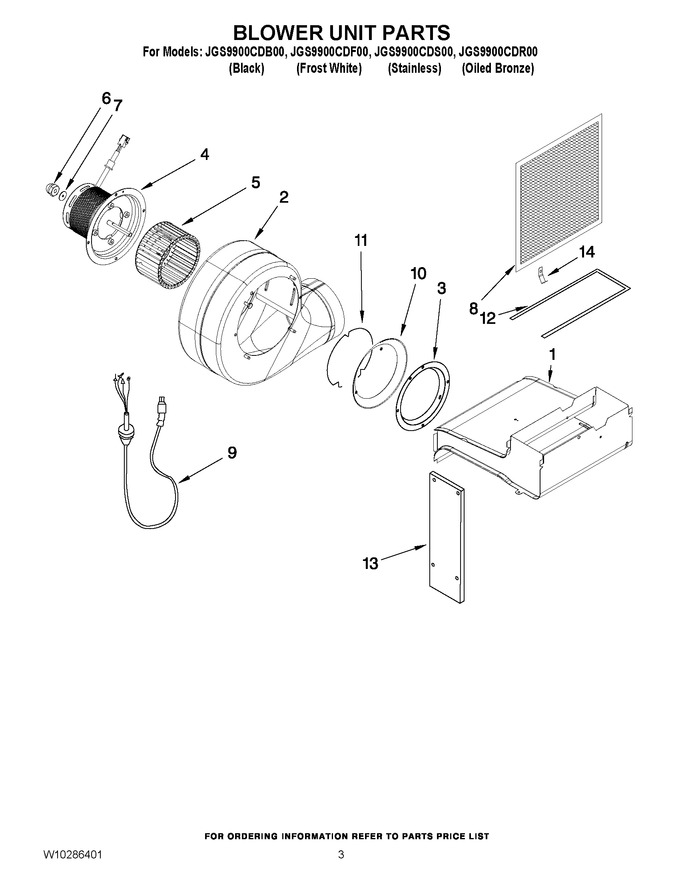

Diagram for JGS9900CDS00
