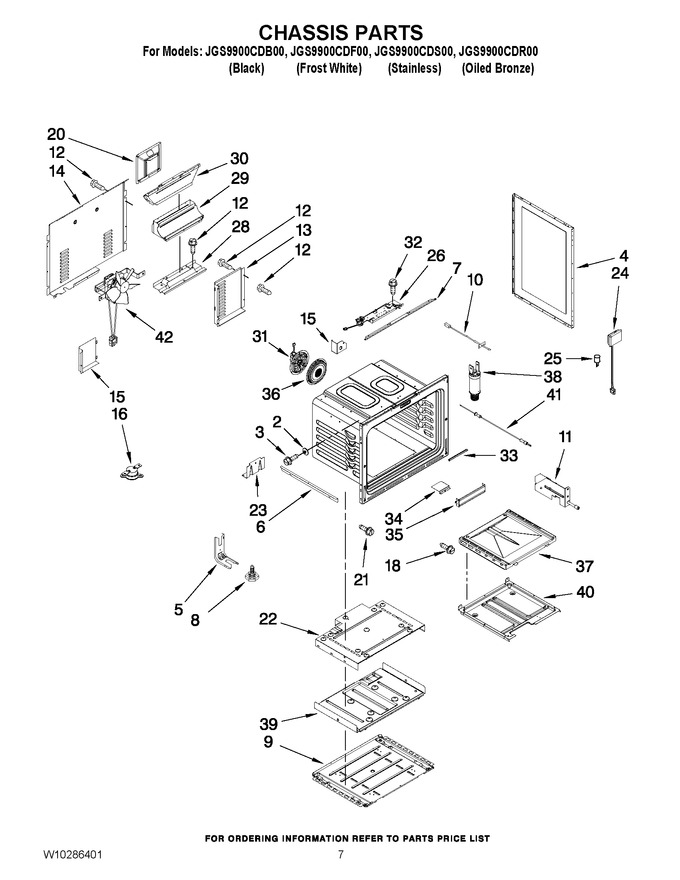

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)				$ 8.25
3	7101P604-60		Screw, Shoulder		Appelez-nous	-
4	2618F202-51		Panel, Side (left Hand)		Appelez-nous	-
4	2618F206-51		Panel, Side (right Hand)				$ 135.68
5	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 6.11
6	W10857933		Spacer, Side Panel (long)   (Replaces: 8004P024-60)				$ 8.25
7	3801F886-51		Bracket, Cooktop				$ 38.25
8	WP74010805		Foot, Leveler (4)   (Replaces: 7101P660-60)				$ 7.55
9	W10271711		Base, Gemini				$ 144.40
10	12001655		Sensor, Oven (lower Oven)   (Replaces: 7430P041-60)			Immediately	$ 45.57
11	WP7450P108-60		Switch, Light Assy   (Replaces: 7450P109-60)			Immediately	$ 161.28
12	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
13	4005F810-51		Cover, Bottom Wire				$ 248.98
14	4005F810-51		Cover, Upper Wire				$ 248.98
15	3801F912-51		Bracket (left)				$ 34.15
15	3801F906-51		Bracket (right)				$ 45.98
16	7450P030-60		Switch, Rotary Fitting			Immediately	$ 101.80
18	WP98008545		Screw (2)   (Replaces: 7101P633-60)				$ 18.60
20	3804F315-51		Retainer, Insulation		Appelez-nous	-
21	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
22	4005F815-51		Cover, Bottom Insulation		Appelez-nous	-
23	3807F615-51		Support, Lwr Oven		Appelez-nous	-
24	7407P180-60		Light Assy. (2)		Appelez-nous	-
25	WP74009925		Bulb, Light (2)   (Replaces: 899138-001)			Immediately	$ 22.63
26	74010819		Latch, Door Lock   (Replaces: 8002P089-60)				$ 378.34
28	3601F221-45		Baffle, Vent Seal				$ 28.30
29	8026P092-60		Extension, Upper Vent				$ 43.91
30	8407P013-60		Flue Assy., Upper				$ 173.03
31	W10206590		Fan, Convection				$ 225.55
32	74003975		Screw   (Replaces: 7101P375-60)				$ 14.03
33	7201P143-60		Seal, Front Frame				$ 16.81
34	4005F736-45		Cover, Burner Opening (2)				$ 7.37
35	3601F221-45		Baffle, Lower Oven Vent				$ 28.30
36	3605F350-19		Cover, Convect.		Appelez-nous	-
37	2205F051-19		Bottom, Lower Oven				$ 230.28
38	7408P086-60		Receptacle, Probe				$ 33.43
39	3804F315-51		Retainer, Bottom Insulation		Appelez-nous	-
40	3401F091-45		Pan, Bake (lower)				$ 82.36
41	WP7430P038-60		Probe, Meat   (Replaces: 7430P038-60)				$ 143.67
42	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 334.53
NI	7002P447-60		Insulation, Back (lower Oven)		Appelez-nous	-
NI	7002P479-60		Insulation, Wrap (lower Oven)		Appelez-nous	-
