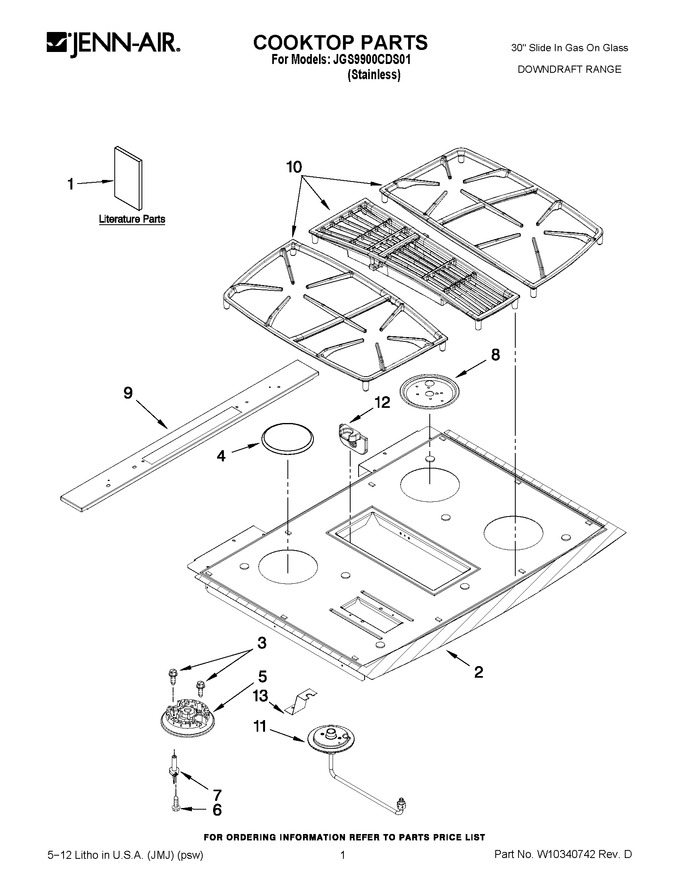

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10235694		Wiring Diagram		Appelez-nous	-
1	8106P068-60		Card, Flow Tester				$ 6.65
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
1	W10430928		Use & Care Guide		Appelez-nous	-
1	W10430956		Installation Instructions		Appelez-nous	-
2	W10235921		Top, Main (stainless)				$ 610.39
3	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 8.56
4	7504P260-60		Cap, Burner Kit				$ 108.31
5	74007736		Burner, Head (rf)   (Replaces: 7505P306-60)			Immediately	$ 117.07
5	74007735		Burner, Head (lr)   (Replaces: 7505P305-60)			Immediately	$ 114.18
5	7505P339-60		Burner, Head (rr)				$ 57.66
5	7505P349-60		Burner, Head (lf - Dual)		Appelez-nous	-
6	WP8273062		Screw   (Replaces: 7101P606-60)			Immediately	$ 7.91
7	WP74009336		Ignitor, Cooktop   (Replaces: 7432P121-60)			Immediately	$ 27.00
8	3424F039-09		Bowl, Dual				$ 14.11
9	4005F789-09		Cover, Trim				$ 109.65
10	7518P332-60		Grate (right Hand)				$ 123.57
10	7772P055-60		Grate (ctr., Grille)		Appelez-nous	-
10	7518P338-60		Grate (left Hand)		Appelez-nous	-
11	7527P087-60		Holder, Orifice (rf)				$ 70.80
11	WP7527P061-60		Holder, Orifice (lf)   (Replaces: 7527P061-60)				$ 113.03
11	WP7527P086-60		Holder, Orifice (lr)   (Replaces: 7527P086-60)				$ 189.78
11	74011741		Holder, Orifice (rr)   (Replaces: 7527P085-60)				$ 193.47
12	74010860		Locator, Grate   (Replaces: 8008P075-60)				$ 10.57
13	3801F681-45		Bracket, Orifice				$ 7.82
