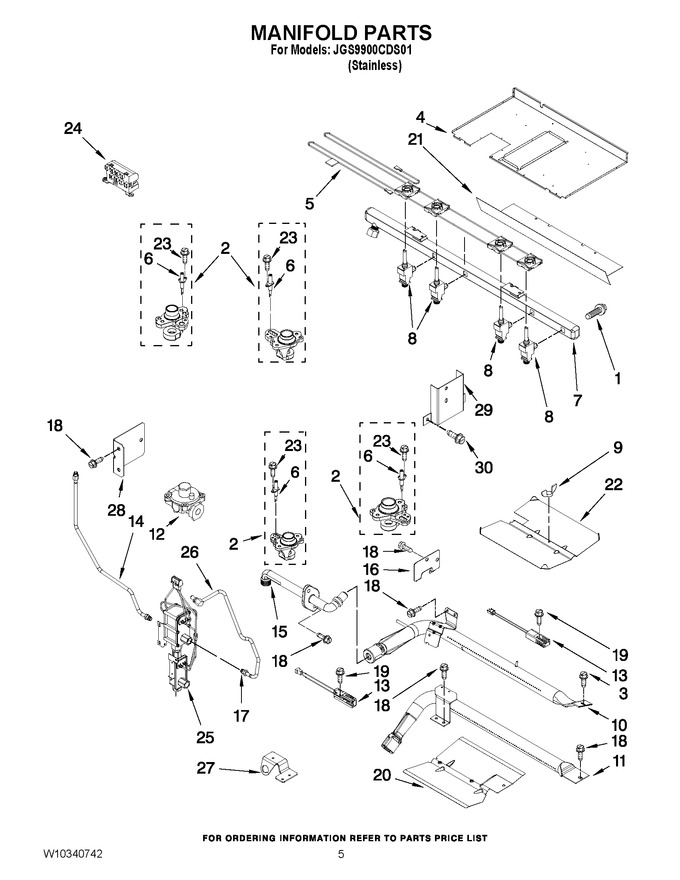

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P639-60		Screw, Valve				$ 5.53
2	WP7527P061-60		Holder, Orifice (left Front, Dual (includes Screw))   (Replaces: 7527P061-60)				$ 113.03
2	7527P087-60		Holder, Orifice (right Fronte 16k)				$ 70.80
2	WP7527P086-60		Holder, Orifice (left Rear 9.2k)   (Replaces: 7527P086-60)				$ 189.78
2	74011741		Holder, Orifice (right Rear 5k)   (Replaces: 7527P085-60)				$ 193.47
3	W11682789		Screw   (Replaces: 7101P360-60)			Immediately	$ 13.64
4	4011F476-51		Bottom, Burner		Appelez-nous	-
5	WP74011648		Harness, Igniter (with Switches) (rf/rr)   (Replaces: 7450P004-60)			Immediately	$ 232.28
6	WP74009336		Ignitor, Top Burner   (Replaces: 7432P121-60)			Immediately	$ 27.00
7	7513P473-60		Pipe,manifold				$ 360.29
8	7502P471-60		Valve (left Rear)		Appelez-nous	-
8	7502P548-60		Valve (right Front)		Appelez-nous	-
8	7502P493-60		Valve (left Front, Dual)				$ 152.67
8	7502P470-60		Valve (right Rear)		Appelez-nous	-
9	7103P030-60		Nut				$ 7.43
10	7505P344-60		Burner, Broiler		Appelez-nous	-
11	7505P324-60		Burner, Bake		Appelez-nous	-
12	74011878		Regulator, Pressure   (Replaces: 7510P100-60)				$ 297.03
13	W11596211		Igniter (bake)   (Replaces: 7432P143-60)			Immediately	$ 93.36
13	W10826866		Igniter (broil)   (Replaces: 7432P140-60)				$ 211.59
14	7506P475-60		Tubing (broiler Fitting To Valve)				$ 79.85
15	74011738		Fitting, Broiler   (Replaces: 7507P421-60)				$ 167.62
16	4005F421-45		Cover, Igniter		Appelez-nous	-
17	74007451		Nut, Mounting   (Replaces: 7103P195-60)				$ 9.39
18	WP3387230		Screw   (Replaces: 7101P502-60)			Immediately	$ 8.54
19	WP4159193		Screw   (Replaces: 7101P282-60)				$ 5.07
20	3601F339-45		Baffle, Bake Burner Valve				$ 98.50
21	7003P154-60		Insulator, Baffle		Appelez-nous	-
22	3601F358-45		Baffle, Broil Burner				$ 254.66
23	WP4159193		Screw, Igniter Burner (with Orifice)   (Replaces: 7101P282-60)				$ 5.07
24	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 238.24
25	7501P193-60		Valve, Bake/broil		Appelez-nous	-
26	7506P475-60		Tubing, Broil Burner (with Orifice)				$ 79.85
27	3801F681-45		Bracket, Orfice				$ 7.82
28	8405P073-60		Bracket, Regulator To Valve		Appelez-nous	-
29	3801F913-51		Bracket, Support Regulator		Appelez-nous	-
30	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
NI	7506P482-60		Tubing, Crossover		Appelez-nous	-
NI	7506P480-60		Tubing, Outer Dual				$ 18.43
NI	W10258123		Kit, Lp Gas				$ 13.15
NI	7506P479-60		Tubing, Inner Dual		Appelez-nous	-
NI	7506P464-60		Tubing, Supply				$ 85.27

    View Diagram in Separate Window       Print Part List
