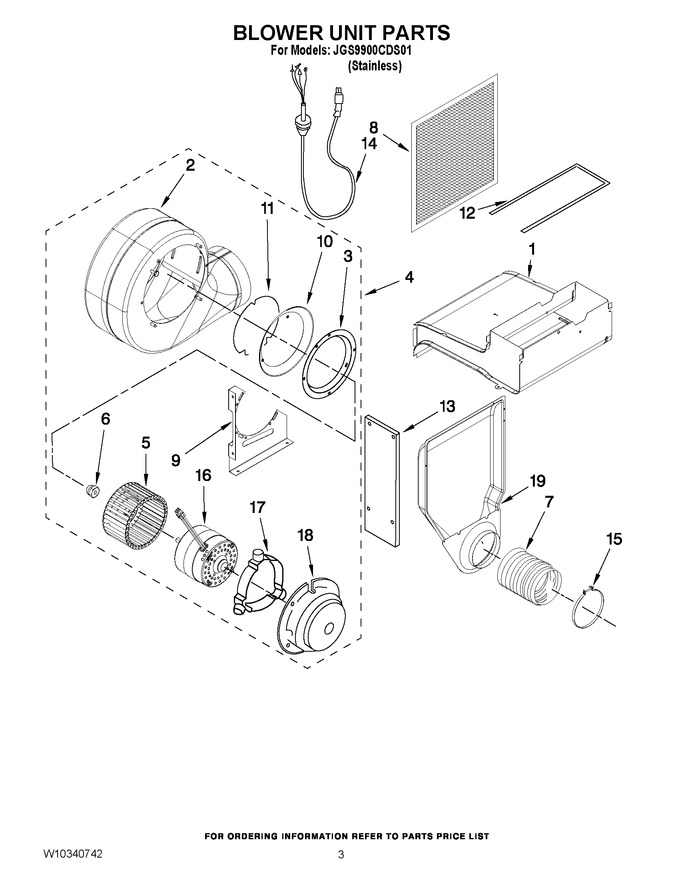

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2801W034-80		Assembly,plenum		Appelez-nous	-
2	2822W003-80		Blower, Scroll		Appelez-nous	-
3	4026F008-51		Ring, Inlet				$ 7.43
4	W10273267		Motor, Blower Assembly				$ 357.14
5	WPY707985		Wheel, Blower   (Replaces: 7114P005-60)			Immediately	$ 161.72
6	WPY707702		Nut   (Replaces: 7103P162-60)			Immediately	$ 7.30
7	8032P003-60		Duct, Flexible		Appelez-nous	-
8	8310P007-60		Filter, Grease				$ 15.69
9	3801F912-51		Bracket, Blower Mount (left)				$ 34.15
9	3801F906-51		Bracket, Blower Mount (right)				$ 45.98
10	4026F009-51		Ring, Restrictor				$ 51.50
11	8038P003-60		Retainer				$ 9.13
12	WP74010776		Gasket, Plenum   (Replaces: 7201P144-60)				$ 74.30
13	4005F537-80		Cover, Plenum		Appelez-nous	-
14	7402P121-60		Power Cord				$ 82.20
15	7111P047-60		Clamp, Hose				$ 7.64
16	WPW10201322		Motor, Blower   (Replaces: W10201322)				$ 358.03
17	5700D526-60		Band, Motor				$ 64.65
18	4005F537-80		Cover, Motor		Appelez-nous	-
19	2801L037-80		Side Plenum Assy				$ 128.16

    View Diagram in Separate Window       Print Part List
