Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3807F751-51 Support, Control Panel Appelez-nous -
2 W10255425 Knob, Control Special Order $ 62.67

3 W10314419 Panel, Control (stainless) Special Order $ 562.44

4 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 18.60

5 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 7.30

6 3604F446-45 Shield, Vent Appelez-nous -
7 WP8507P236-60 Control (gas)   (Replaces: 8507P236-60) Special Order $ 411.11

8 3604F433-51 Shield, Sight Special Order $ 31.44

9 4005F810-51 Cover, Rear Wire Special Order $ 248.98

10 WP59002061 Screw   (Replaces: 7101P077-60) Special Order $ 8.18

11 3604F419-51 Shield, Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

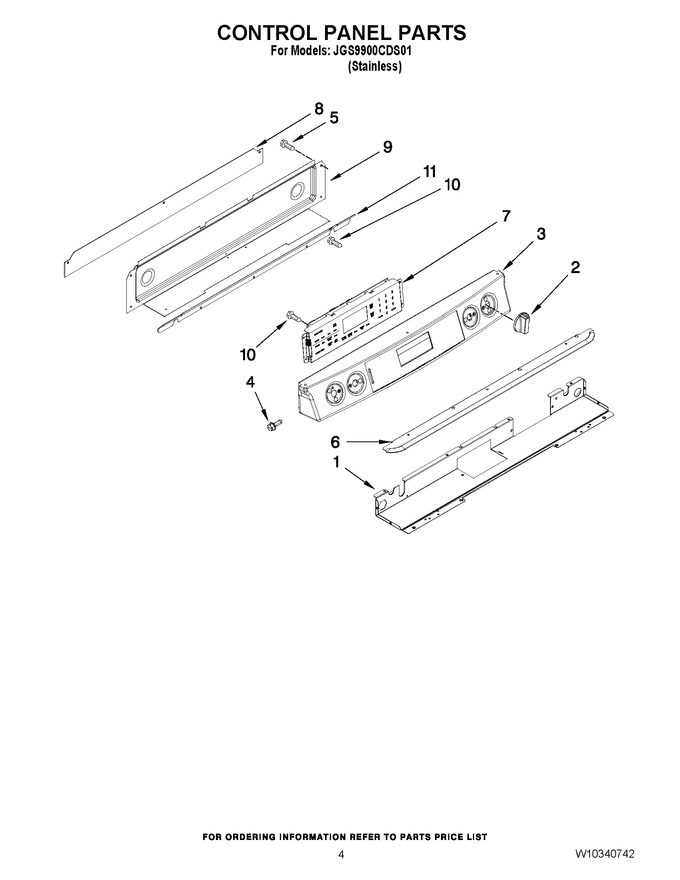

Diagram for JGS9900CDS01
