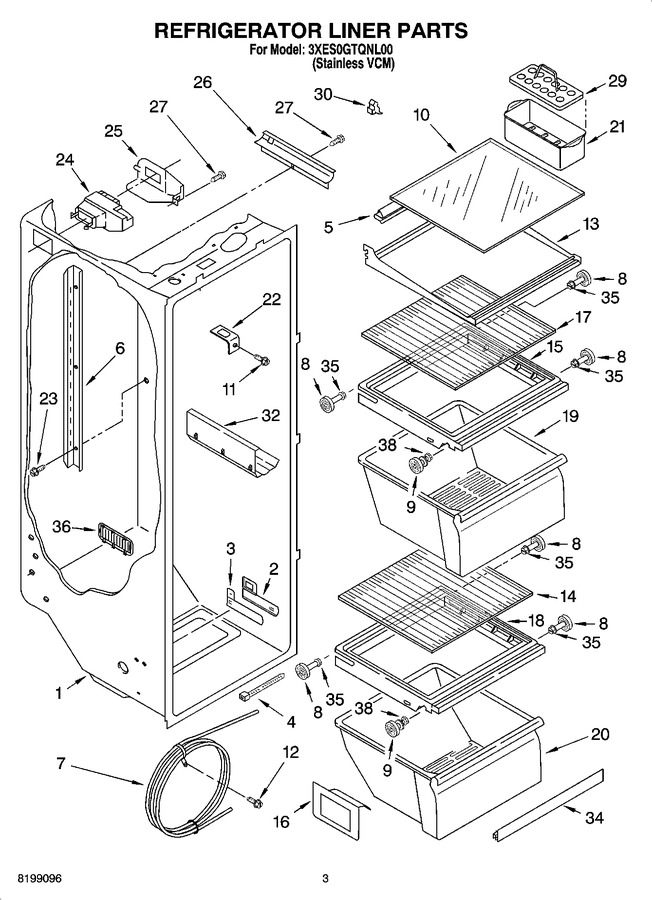

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 91.28 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | WP2205813 | Strap (Replaces: 2205813) |
|
$ 7.72 | |||||
| 5 | 1125594 | Retainer (3) |
|
- | |||||
| 6 | 2206270 | Shelf Ladder (2) |
|
- | |||||
| 7 | WP2256126 | Reservoir (Replaces: 2209687) |
|
$ 168.85 | |||||
| 8 | WP2196483 | Stud Assembly (Replaces: 2196483) |
|
$ 10.35 | |||||
| 9 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 14.07 | ||||
| 10 | 2177978 | Glass, Shelf (3) |
|
- | |||||
| 11 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 7.68 | |||||
| 12 | 488280 | Screw |
|
- | |||||
| 13 | 2173178 | Shelf, Assembly Cantilever (3) |
|
- | |||||
| 14 | W10864399 | Glass, Meat Cover (Replaces: 2179259) |
|
$ 220.98 | |||||
| 15 | W10508993 | Crisper Cover (Replaces: 2209698) |
|
$ 291.29 | |||||
| 16 | 2179350 | Deflector |
|
$ 81.80 | |||||
| 17 | W10864399 | Glass, Crisper (Replaces: 2174150) |
|
$ 220.98 | |||||
| 18 | 2217039 | Meat Pan Cover |
|
- | |||||
| 19 | WP2188661 | Crisper Pan (Replaces: 2188653) |
|
Immediately | $ 162.07 | ||||
| 20 | WP2188664 | Meat Pan (Replaces: 2188654) |
|
Immediately | $ 85.30 | ||||
| 21 | W10136387A | Egg Bin (Replaces: 2216625) |
|
$ 18.61 | |||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 34.38 | |||||
| 23 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 24 | WPW10129864 | Air Diffuser Assembly (Replaces: 2209752) |
|
$ 344.30 | |||||
| 25 | WP2212240 | Air Diffuser Cover (Replaces: 2212240) |
|
$ 131.57 | |||||
| 26 | 2150330 | Cover, Conduit |
|
- | |||||
| 27 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.75 | |||||
| 29 | WP2177817 | Egg Carrier (Replaces: 2164373) |
|
$ 17.89 | |||||
| 30 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 10.42 | |||||
| 32 | W10777924 | Rack, Wine & Egg (Replaces: 2179404) |
|
$ 23.60 | |||||
| 34 | 2209704 | Extension, Cover |
|
- | |||||
| 35 | WP3400806 | Screw (Replaces: 8281158) |
|
$ 7.71 | |||||
| 36 | 2257741 | Louver |
|
- | |||||
| 38 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 8.05 |
