SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Air Flow Parts


05 - Motor And Ice Container Parts


06 - Freezer Door Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts, Optional Parts (not Included)

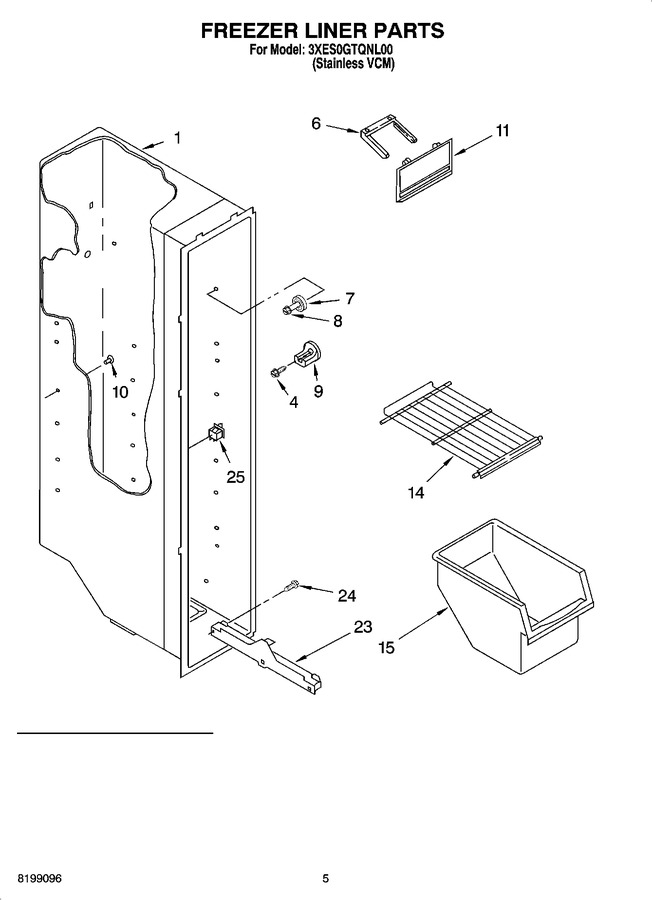

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
4	W10142289		Screw   (Replaces: 3400893)				$ 9.15
6	1115380		Slide, Ice Door		Appelez-nous	-
7	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
8	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
9	2196207		Stud, Rear				$ 7.61
10	2176134		Grommet (10)				$ 5.83
11	2171712		Door, Ice Compartment				$ 66.58
14	2174270		Shelf (2)		Appelez-nous	-
15	2171707		Freezer Bin		Appelez-nous	-
23	1115383		Slide, Freezer Bin (left Side)		Appelez-nous	-
23	W10845583		Slide, Freezer Bin (right Side)   (Replaces: 1119293)				$ 123.92
24	718257		Screw   (Replaces: 489100)		Appelez-nous	-
25	W11457217		Rocker Arm Switch   (Replaces: 1115373)				$ 38.18

    View Diagram in Separate Window       Print Part List
