SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

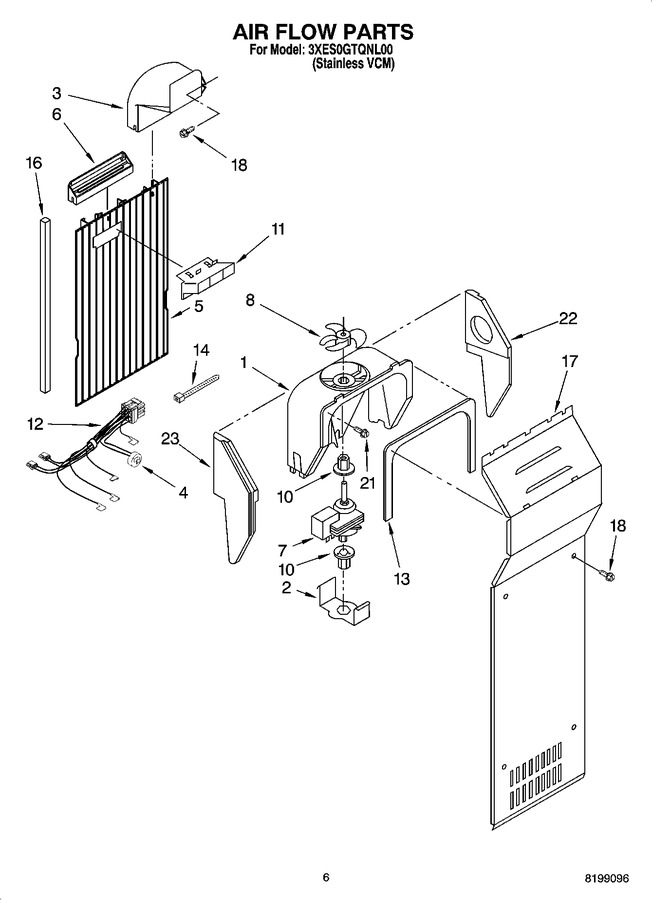

04 - Air Flow Parts


05 - Motor And Ice Container Parts


06 - Freezer Door Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254898		Fan Scroll   (Replaces: 2182119)			Immediately	$ 323.27
2	2155590		Retainer Fan Motor				$ 5.83
3	2161231		Air Scoop				$ 42.67
4	WPW10225581		Bi-metal, Defrost   (Replaces: 2188824)			Immediately	$ 50.77
5	2203591		Air Duct Freezer		Appelez-nous	-
6	2149544		Diffuser, Air Duct				$ 52.53
7	2187151		Fan Motor		Appelez-nous	-
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
10	WP2176759		Grommet, Fan (2)   (Replaces: 2176759)				$ 7.77
11	2182146		Duct, Icemaker				$ 88.84
12	2187903		Harness, Fan, Evaporator (includes 4)		Appelez-nous	-
13	WP2155789		Gasket, Fan Scroll   (Replaces: 2155788)				$ 7.79
14	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
16	4388500		Gasket   (Replaces: 2203875)				$ 90.39
17	2203840		Cover, Evaporator		Appelez-nous	-
18	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	4388358		Support, R.s   (Replaces: 2203595)				$ 31.16
23	4388358		Support, L.s   (Replaces: 2203596)				$ 31.16
