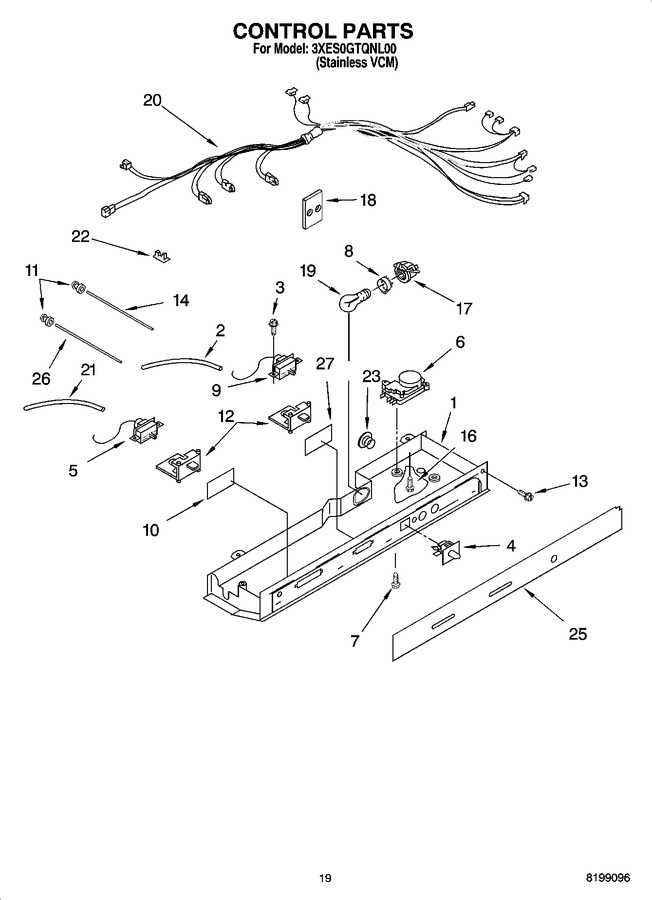

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat (rc)   (Replaces: 2182151)				$ 7.95
3	2006254		Screw   (Replaces: 489214)				$ 13.13
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	2187158		Thermostat (fc)				$ 90.49
6	WP2188379		Defrost Timer   (Replaces: 2188380)				$ 193.40
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	WP2175210		Shroud, Light   (Replaces: 2175210)				$ 82.61
9	WP2161460		Thermostat (r.c.)   (Replaces: 2183739)			Immediately	$ 248.67
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 21.22
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.67
14	2179920		Light Bar (rc)				$ 37.08
16	WP488488		Screw   (Replaces: 489290)				$ 7.68
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
18	2172931		Heat Shield				$ 70.38
19	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
20	2206510		Control Box Harness		Appelez-nous	-
21	WP2196003		Tube Barrier, Thermostat (fc)   (Replaces: 2196003)				$ 7.95
22	1115375		Clip, Wiring				$ 11.15
23	940014		Hole Plug				$ 18.33
25	2261750		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	350956		Enamel, Almond (12 Oz. Spray Can)				$ 51.44
	350942		Primer, White (12 Oz. Spray Can)				$ 89.66
	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 8.07
	2209778		Ice Container Assembly		Appelez-nous	-
	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	N/A		Torx Screw Wrench		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
