Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
2 2194744 Escutcheon, Meat Pan Control Special Order $ 91.28

3 2182757 Slide Meat Pan Control Special Order $ 75.15

4 2257741 Louver Appelez-nous -
6 WP3-24004-109 Screw   (Replaces: 3400894) Special Order $ 8.05

7 2311637 Wire Harness, Dual Crisper Light   (Replaces: 2256037) Special Order $ 140.23

8 W11223328 Stud Assembly   (Replaces: 2196485) In-Stock Immediately $ 14.07

9 2206270 Shelf Ladder Appelez-nous -
10 WP489478 Screw   (Replaces: 489478) Special Order $ 7.75

12 W10777924 Rack, Wine & Egg   (Replaces: 2179404) Special Order $ 23.60

15 WPW10151375 Air Diffuser Assembly   (Replaces: 2209754) Special Order $ 117.95

18 4387478 Socket   (Replaces: 2162085) In-Stock Immediately $ 110.16

19 2256035 Bracket, Dual Crisper Light Special Order $ 62.54

20 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

21 2209769 Light Lens Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

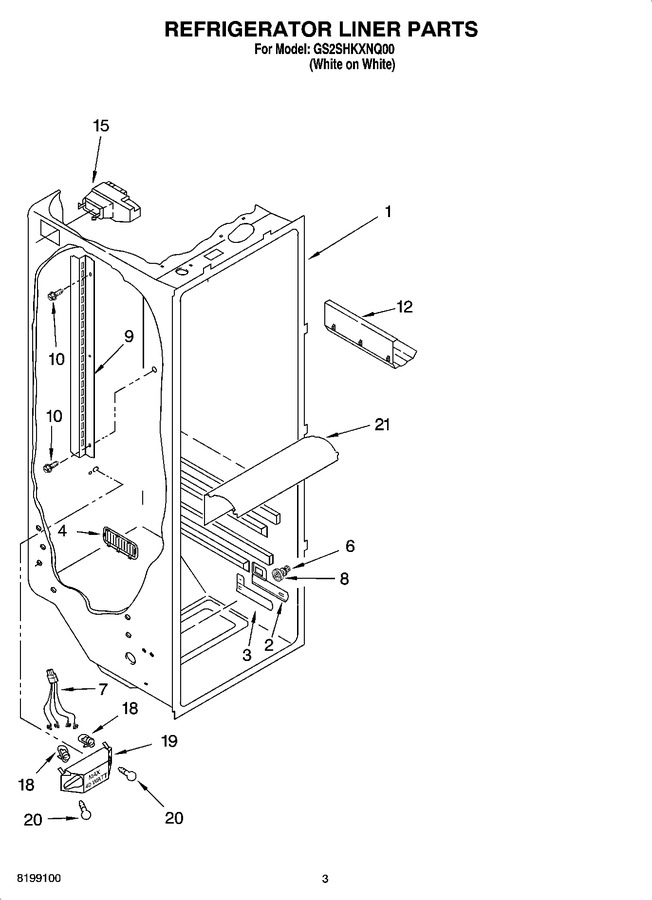

Diagram for GS2SHKXNQ00
